| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,948 pcs
|
3948 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Halogen Content | |
| Halogen Free | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Solder Process Capability | |
| Tape & Reel |

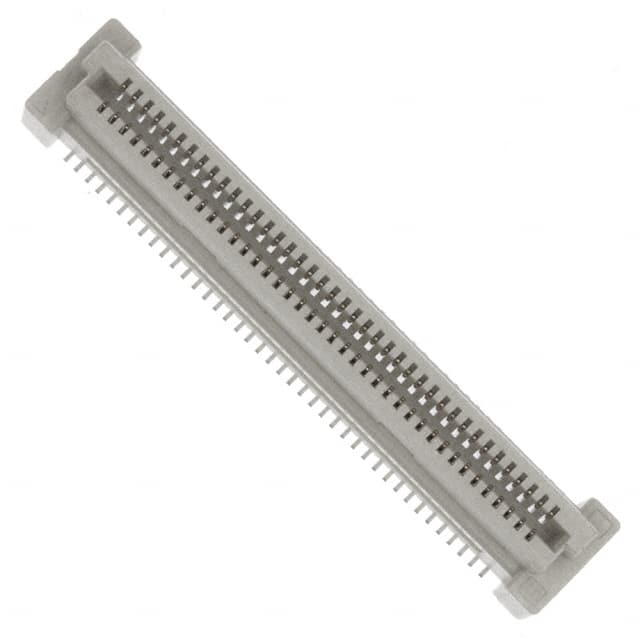

The TE Connectivity 5-5179009-3 is an 80-position receptacle connector part of a fine pitch board-to-board connector array family. It features a 0.8mm pitch and a 2-row configuration with outer shroud contacts, providing a reliable mezzanine connection.
The connector offers gold contact finish with 8.00µin thickness ensuring robust conductivity and durability. The device supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm, providing flexibility for various board spacing requirements.
This part is surface mount compatible and capable of reflow soldering up to 260°C. It includes a board guide feature for alignment during assembly. The housing is low halogen compliant and the part is free of BFR, CFR, and PVC.
| Qty | Low | High |
|---|---|---|
| 3,600+ | $4.12 | $4.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has a pitch of 0.80mm (0.031").
This connector uses Surface Mount (SMT) mounting.
It has 80 positions arranged in 2 rows.
The contacts have a Gold finish with 8.00µin (0.203µm) thickness.
Supported mated stacking heights are 9mm, 10mm, 11mm, and 12mm.
