| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,256 pcs
|
4256 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

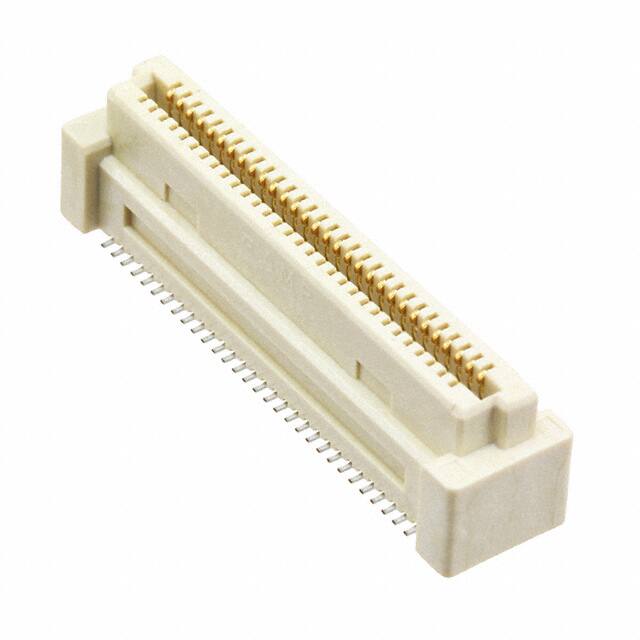

The TE Connectivity 5-5179009-2 is a high-density board-to-board connector receptacle featuring 60 positions arranged in 2 rows with a 0.80mm pitch. It is designed for surface mount assembly and includes a board guide for reliable alignment during mating.
This receptacle has gold-plated contacts with a thickness of 0.203µm (8.00µin) for reliable electrical performance. It supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm, offering design flexibility for various mezzanine spacing requirements.
The connector is reflow solder capable to 260°C, making it compatible with standard lead-free soldering processes. It is RoHS, ELV, and China RoHS compliant, and does not contain REACH SVHC substances. The housing material is low halogen, with Br, Cl, F, and I each below 900 ppm.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.58 | $3.58 |
| 10+ | $3.15 | $3.15 |
| 25+ | $2.94 | $2.94 |
| 112+ | $2.81 | $2.81 |
| 256+ | $2.57 | $2.57 |
| 512+ | $2.49 | $2.49 |
| 1,008+ | $2.41 | $2.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 60 positions arranged in 2 rows.
The pitch is 0.80mm.
It uses surface mount technology.
Yes, the connector is EU RoHS compliant per Directive 2011/65/EU.
The contact finish is gold with a thickness of 0.203µm (8.00µin).
