| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

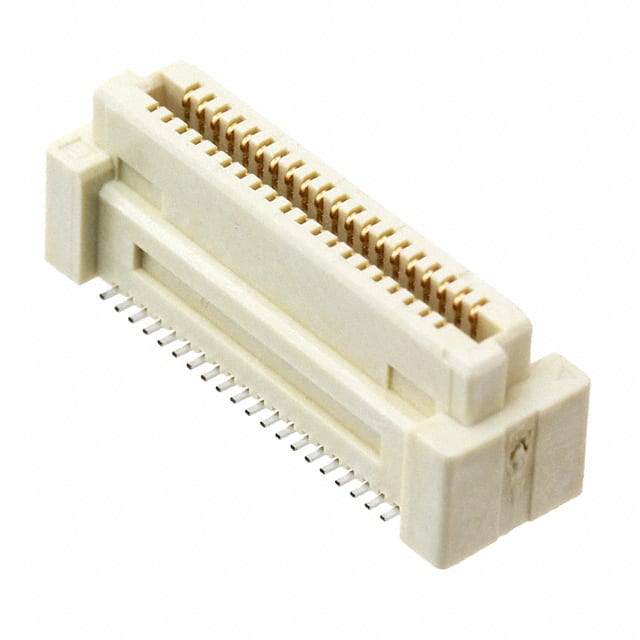

The TE Connectivity 5-5179009-1 is a 40 position receptacle connector featuring outer shroud contacts. It has a 0.80mm (0.031") pitch and a 2-row configuration, designed for surface mount mounting. The connector supports mated stacking heights of 9mm, 10mm, 11mm, and 12mm, making it suitable for mezzanine (board-to-board) applications. The height above board is 0.305" (7.75mm). Contacts are finished with 8.00µin (0.203µm) gold. A board guide feature is included to assist with alignment during assembly. This connector is part of TE Connectivity's 0.8FH series and is categorized under Arrays, Edge Type, Mezzanine (Board to Board) connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.86 | $2.86 |
| 10+ | $2.30 | $2.30 |
| 22+ | $2.12 | $2.12 |
| 110+ | $1.95 | $1.95 |
| 264+ | $1.79 | $1.79 |
| 506+ | $1.73 | $1.73 |
| 1,012+ | $1.63 | $1.63 |
| 2,508+ | $1.54 | $1.54 |
| 5,016+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Receptacle, Outer Shroud Contacts.
40 positions.
0.80mm (0.031").
Surface mount.
Gold, 8.00µin (0.203µm) thickness.
9mm, 10mm, 11mm, and 12mm.
