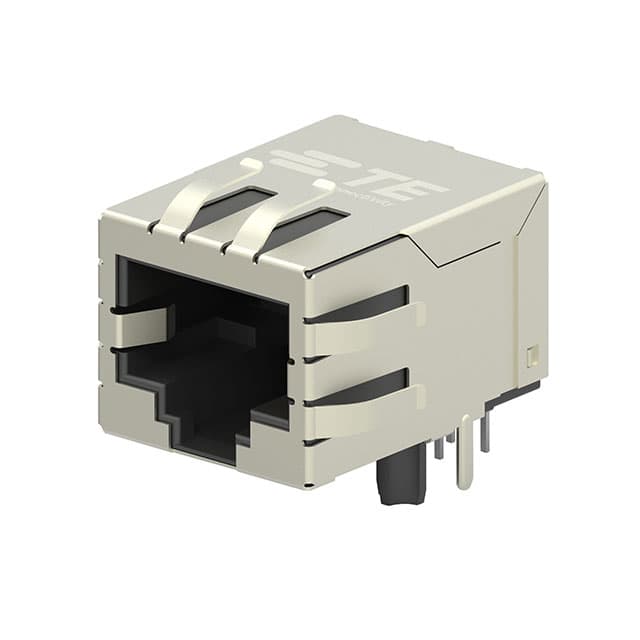

5-2301994-4 by TE Connectivity AMP Connectors

5-2301994-4 by TE Connectivity AMP Connectors

CONN JACK 1PORT 100 BASE-T PCB

DistiPart #
Manufacturer Name TE Connectivity AMP Connectors
Manufacturer Part #

5-2301994-4

Manufacturer Standard Lead Time 12 Weeks
EDA/CAD Models
Are you a distributor of this part? Register now to receive RFQ from buyers.
Download Datasheet
Other Documents
Estimated Stock: 7185 *Can dispatch immediately
Estimated Price $6.23
Estimated Lead time 12 Weeks
Minimum Order Quantity: 1

Specifications of 5-2301994-4

Product Attribute
Attribute Value
Select Attribute
Category
Modular Connector Jacks With Magnetics
Manufacturer
TE Connectivity AMP Connectors
Applications
10/100 Base-T, AutoMDIX
Connector Type
RJ45
Contact Finish
Gold
Contact Material
Copper Alloy
Features
Board Lock
Height Above Board
0.531" (13.49mm)
LED Color
Does Not Contain LED
Mounting Type
Through Hole
Number of Cores per Jack
4
Number of Ports
1
Number of Rows
1
Operating Temperature
-40ﾂｰC ~ 85ﾂｰC
Orientation
90ﾂｰ Angle (Right)
Shielding
Shielded, EMI Finger
Tab Direction
Down
Termination
Solder
View All Features
DistyParts - Get Multiple quotes in one request

Product Compliance of 5-2301994-4

Attributes Description
CNHTS 98765434567
USHTS 45678987654
TARIC 67898765567
ECCN 3A991

Documents of 5-2301994-4

Datasheet
  Datasheet

Environmental & Export Classifications of 5-2301994-4

Attributes Description
RoHS Status RoHS3 Compliant
Moisture Sensitivity Level (MSL) 1 Unlimited
REACH Status REACH Unaffected
ECCN 3A991
HTSUS 9876.21.0030

Additional Resources of 5-2301994-4

Attributes Description
Other Names RMCF 1/16S 0 R RMCF0402ZT0R00-ND RMCF1/16S0RTR-ND RMCF1/16S0RCT RMCF0402ZT0R00CT RMCF1/16S0RDKR-ND RMCF1/16S0RDKR
Standard Package 10,000
