| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions |

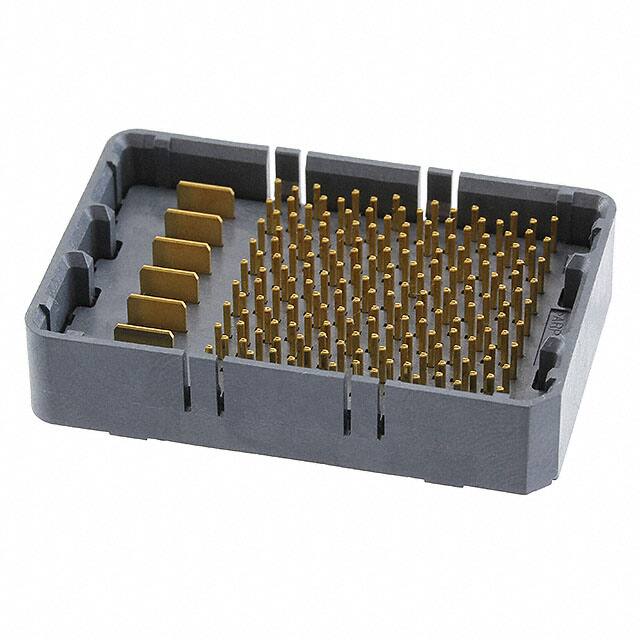

This TE Connectivity differential pair array connector (part number 5-2057460-9) is a male plug designed for board-to-board mezzanine applications. It features 184 total positions, comprising 178 signal contacts and 6 power contacts, enabling high-density interconnections in compact electronic assemblies.
The connector uses a through hole press-fit mounting style, providing a reliable solderless connection to the printed circuit board. The contact finish is tin, offering good conductivity and corrosion resistance. With a mated stacking height of 9mm and a height above board of 0.346 inches (8.80mm), this connector is suitable for mezzanine card stacking configurations.
This component is classified under Arrays, Edge Type, Mezzanine (Board to Board) connectors and is RoHS3 compliant, REACH unaffected, with an MSL of 1 (unlimited). It is designed for use in high-speed differential pair signaling applications where signal integrity and controlled impedance are critical.
| Qty | Low | High |
|---|---|---|
| 7,200+ | $39.50 | $39.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Differential Pair Array, Male.
184 positions total: 178 signal positions plus 6 power positions.
Through Hole, Press-Fit.
Tin.
9mm.
0.346 inches (8.80mm).
