| Category | |
| Manufacturer Name | |
| Centerline (Pitch) | |
| Connector Type | |
| Contact Base Material | |
| Contact Current Rating | |
| Contact Finish | |
| Contact Finish Thickness | |
| Data Rate | |
| Dielectric Withstanding Voltage | |
| Height Above Board | |
| Housing Material | |
| Impedance | |
| Insulation Resistance | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Operating Voltage | |
| Primary Product Color | |
| Stack Height | |
| Termination Method | |
| Termination Method to Printed Circuit Board | |
| connector_height |

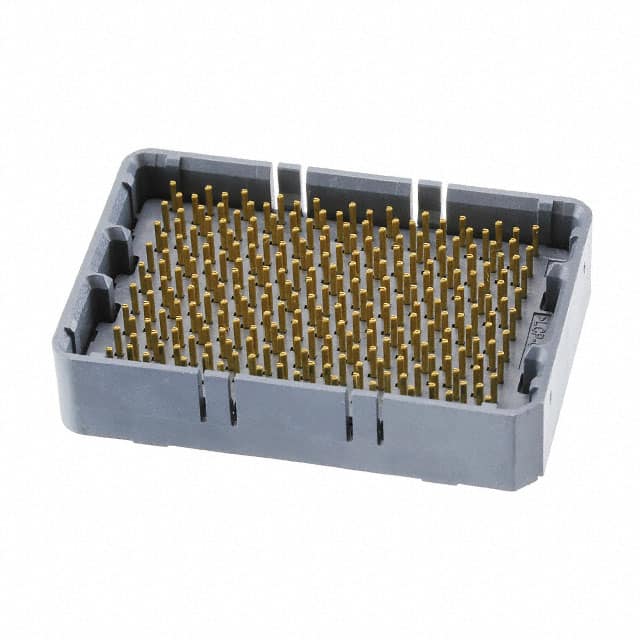

The TE Connectivity 5-2057360-9 is a differential pair array plug designed for board-to-board applications. It features 259 positions with a dual pitch of 3.04 mm and 6.09 mm, enabling high-density interconnects. The connector supports data rates up to 16 Gb/s and is rated for 250 VAC operating voltage with a 100 Ω impedance.
This plug uses a through hole press-fit termination method and gold-plated contacts for reliable signal integrity. The housing is made of high-temperature LCP thermoplastic and the connector height is 4.49 mm, with a mated stacking height of 9 mm. It is part of the STRADA product family from TE Connectivity.
Designed for parallel board-to-board configurations, this connector is suitable for high-speed digital applications requiring differential pair routing. The press-fit termination eliminates soldering, reducing assembly time and improving reliability.
| Qty | Low | High |
|---|---|---|
| 7,200+ | $28.06 | $28.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum data rate is 16 Gb/s.
The maximum operating voltage is 250 VAC.
It has 259 positions.
Through hole, press-fit.
Gold, with a thickness of 30.0 µin (0.76 µm).
The nominal impedance is 100 Ω.
The mated stacking height is 9 mm.
