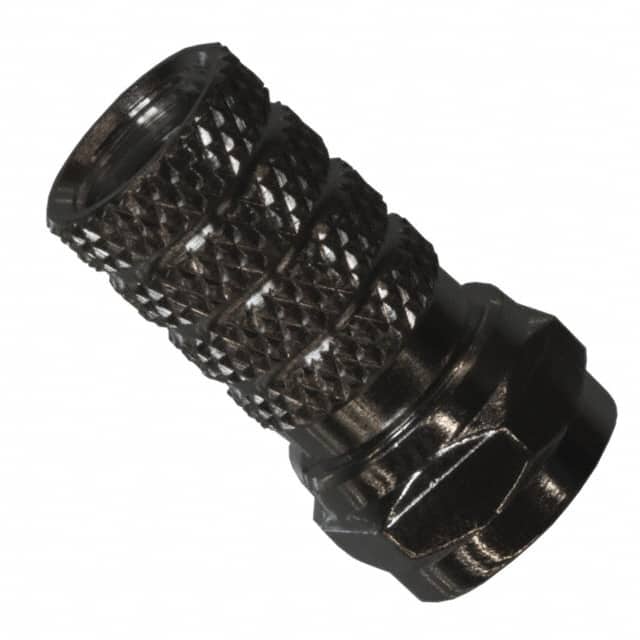

5-1814822-5 F Type plug connector with 75 Ohm impedance, rated for 1 GHz. Features threaded fastening and twist on shield termination for CT100 cable.
Mfr Part #:

5-1814822-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
F Type plug connector with 75 Ohm impedance, rated for 1 GHz. Features threaded fastening and twist on shield termination for CT100 cable.
✓ Total Stock: 1,000 pcs

5-1814822-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request 1012 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-1814822-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Connector Style
Connector Type
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
View Similar Products (0)

5-1814822-5 Description

Short technical summary and product information.

This is an F Type coaxial connector plug with male pin contact, designed for 75 Ohm systems. It operates up to 1 GHz, making it suitable for RF applications.



The connector features a threaded fastening mechanism for secure connection and a twist on shield termination for easy installation. It is designed for free hanging (in-line) mounting and is compatible with CT100 cable group.



The housing is silver in color. The connector is RoHS3 compliant and REACH unaffected (unverified). It is a single port connector.

5-1814822-5 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: F Type Plug Connector, 75 Ohm, 1 GHz, Free Hanging
Subcategory: Plug, Male Pin

5-1814822-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5-1814822-5 Features

  • F Type plug connector with 75 Ohm impedance.
  • Rated for operation up to 1 GHz.
  • Threaded fastening for secure connection.
  • Twist on shield termination for easy installation.
  • Free hanging (in-line) mounting style.

5-1814822-5 Applications

  • Ideal for 75 Ohm RF signal transmission.
  • Used in cable television and broadband systems.
  • Suitable for satellite and antenna connections.
  • Common in video and data distribution networks.

5-1814822-5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type of this connector?

Free hanging (in-line) mounting.

What is the impedance of this connector?

75 Ohm.

What frequency range does it support?

Up to 1 GHz.

What type of connector is this?

F Type plug, male pin.

What fastening type does it use?

Threaded.

How is the shield terminated?

Twist on.

What cable group is it compatible with?

CT100.
