| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

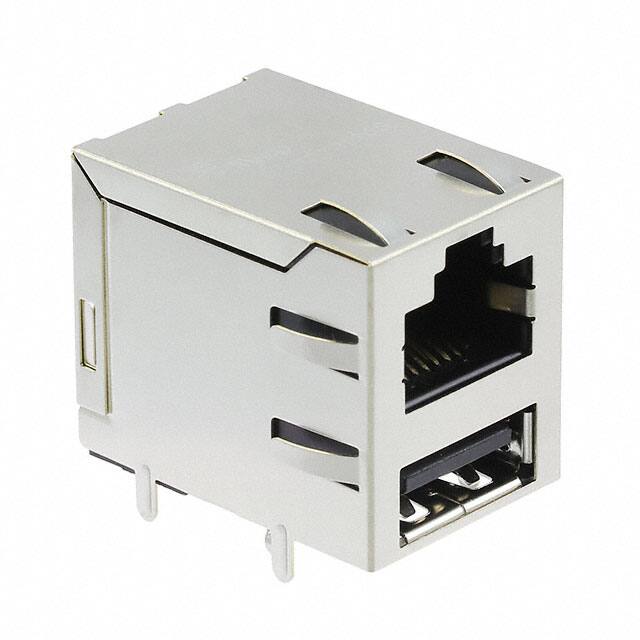

The TE Connectivity 5-1775855-1 is a modular connector jack featuring an 8p8c (RJ45, Ethernet) configuration in a single-port design. It is oriented at a 90° angle (right angle) for space-constrained applications where the connector exits parallel to the PCB. The device uses through hole mounting with solder termination, providing a robust mechanical connection.
The connector includes full shielding with an EMI finger to reduce electromagnetic interference, making it suitable for data communication environments. Contact material is phosphor bronze with a gold finish for reliable conductivity and corrosion resistance. A board lock feature secures the connector during soldering and prevents movement during use. The tab direction is up, and the jack does not contain LEDs.
This part is RoHS3 compliant with an MSL of 1 (unlimited floor life) and is REACH unaffected, though these compliance details are unverified. It is intended for use in networking and telecommunications equipment where space is limited and EMI protection is required.
It is a modular jack with USB A style connector, featuring 8p8c (RJ45, Ethernet) position/contact arrangement.
It has 1 port.
Through hole mounting with 90° right angle orientation.
Yes, it is shielded and includes an EMI finger.
Phosphor bronze contact material with gold finish.
No, it does not contain an LED.
RoHS3 compliant, MSL 1 (unlimited floor life), and REACH unaffected (all unverified).
