| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

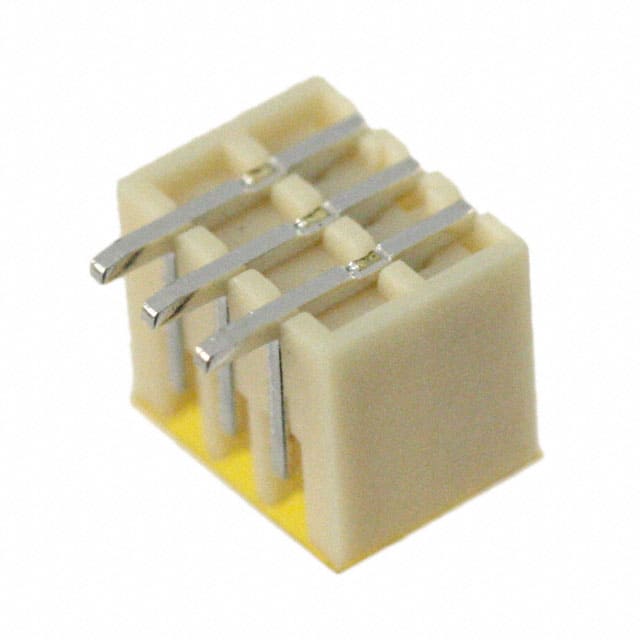

The TE Connectivity 5-1775443-3 is a surface mount header connector designed for board-to-cable/wire applications. It features 3 positions in a single row with a 1.50mm pitch, making it suitable for compact electronic assemblies. The housing is made of thermoplastic with a natural color and a flammability rating of UL94 V-0. The contacts are brass with a tin finish, rated for 3A current and 250VAC voltage. The shrouded 4-wall design provides protection and alignment during mating. The operating temperature range is -55°C to 105°C, and the part includes a pick-and-place feature for automated assembly. RoHS3 compliance is listed but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.19 | $0.19 |
| 10+ | $0.15 | $0.15 |
| 800+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
1.50mm.
3A.
250VAC.
Surface mount.
-55°C to 105°C.
Tin, 100.0µin (2.54µm).
