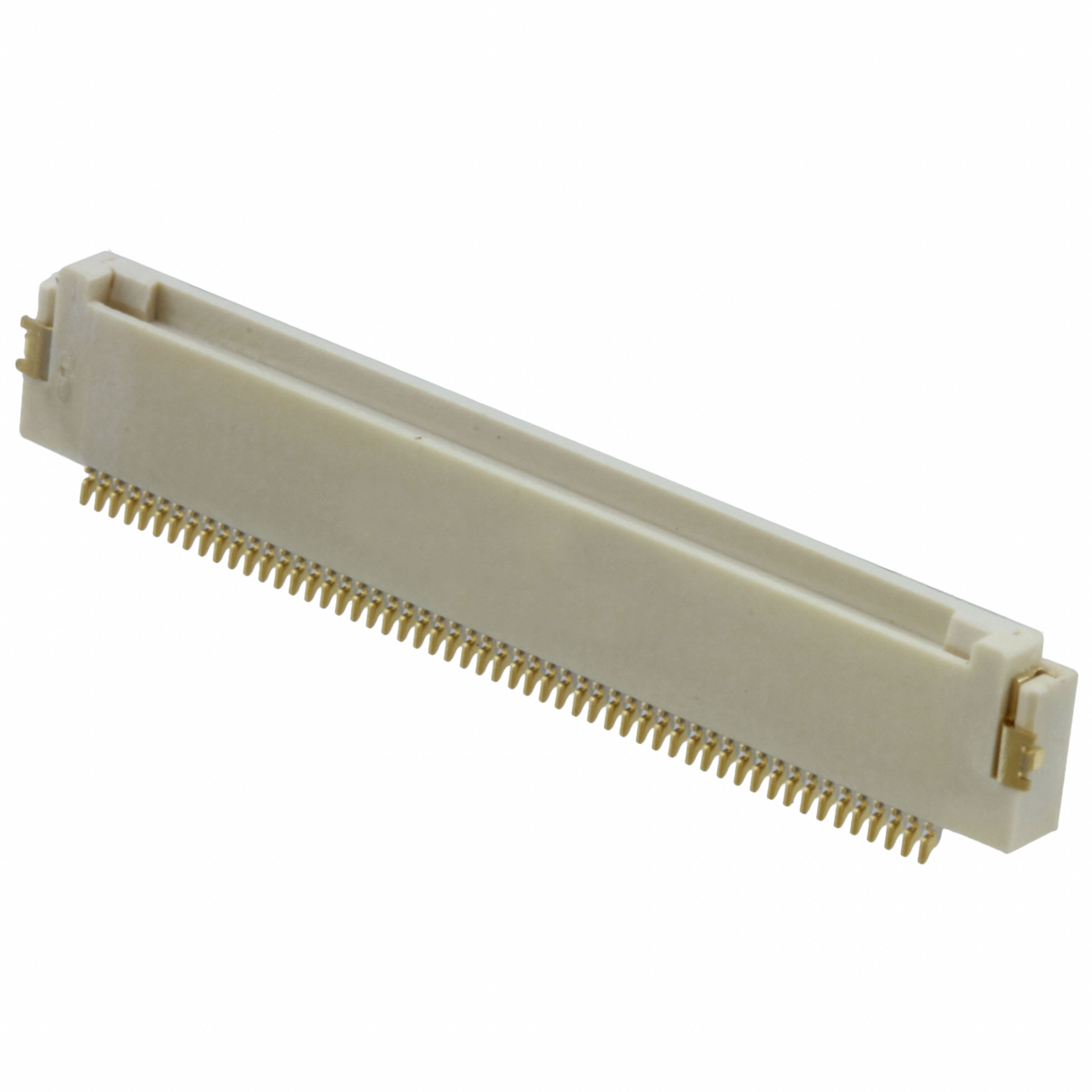

5-1775333-4 TE Connectivity 5-1775333-4 is a 54-position, 0.5mm pitch FPC connector with right-angle surface mount and gold-plated contacts.
Mfr Part #:

5-1775333-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5-1775333-4 is a 54-position, 0.5mm pitch FPC connector with right-angle surface mount and gold-plated contacts.
✓ Total Stock: 48 pcs
$ Price Range: $1.11

5-1775333-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
48 pcs
On Request
48 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-1775333-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Lead Spacing
Lead Style
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

5-1775333-4 Description

Short technical summary and product information.

The TE Connectivity 5-1775333-4 is a 54-position FPC connector with a 0.5mm pitch, designed for surface mount right-angle installation. It features a flip lock actuator for secure cable retention and a zero insertion force (ZIF) design for easy cable insertion. The connector accepts 0.30mm thick FPC cables with straight cable ends.



This connector is rated for 250V and operates over a temperature range of -20°C to 85°C. The housing and actuator are made of liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with gold finish, and the connector includes solder retention features for reliable mounting.



Typical applications include consumer electronics, industrial controls, and other devices requiring compact, reliable flat flexible cable connections. The right-angle orientation and low 2.05mm profile make it suitable for space-constrained PCB layouts.

5-1775333-4 Quick Information

Product Type: FPC Connector
Canonical Name: 54 Position 0.5mm Pitch FPC Connector, Surface Mount, Right Angle

5-1775333-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

5-1775333-4 Estimated Pricing

Qty Low High
10,000+ $1.11 $1.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-1775333-4 Features

  • 54 positions at 0.5mm pitch.
  • Right angle surface mount design.
  • Flip lock actuator for secure retention.
  • Gold plated phosphor bronze contacts.
  • Zero insertion force (ZIF) cable insertion.

5-1775333-4 Applications

  • Used in compact consumer electronics devices.
  • Ideal for flat flexible cable connections.
  • Suitable for space-constrained PCB layouts.
  • Common in industrial control systems.

5-1775333-4 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this FPC connector have?

This connector has 54 positions.

What is the pitch of this FPC connector?

The pitch is 0.50mm (0.020 inches).

What is the voltage rating of this connector?

The voltage rating is 250V.

What mounting type does this connector use?

It is a surface mount, right angle connector.

What is the operating temperature range?

The operating temperature range is -20°C to 85°C.

What type of locking feature does this connector have?

It features a flip lock actuator.

What is the maximum FPC cable thickness supported?

The connector supports FPC cables up to 0.30mm thick.
