| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Application | |
| Connector Type | |
| Contact Current Rating (Max) | |
| Contact Finish | |
| Contact Finish Thickness | |
| Dielectric Withstanding Voltage (Max) | |
| Height Above Board | |
| Housing Material | |
| Insulation Resistance | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Operating Voltage | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Primary Product Color | |
| Tape & Reel | |
| UL Flammability Rating |

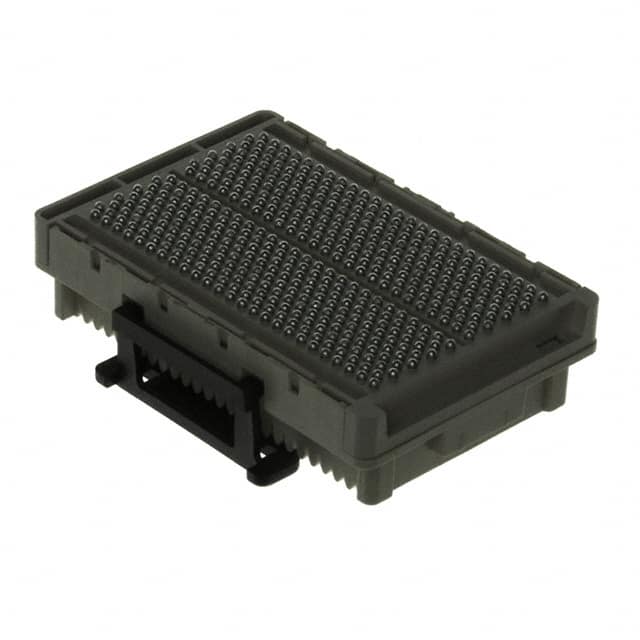

The TE Connectivity 5-1761615-5 is a high-density differential pair array receptacle designed for parallel board-to-board configurations. It offers 200 positions arranged in 2 rows with a 1.3 mm pitch. The connector supports vertical PCB mounting via surface mount solder ball termination. Mated stacking heights range from 15 mm to 30 mm.
Electrically, each contact is rated for 1 A maximum current with an operating voltage of 48 VAC. The dielectric withstanding voltage is 500 VAC, and insulation resistance measures 18 MΩ. The contact mating area is plated with 0.76 µm of gold for reliable signal integrity.
The housing is made of thermoplastic with a UL 94V-0 flammability rating. The operating temperature range is 0 to 100 °C. This component is RoHS compliant. It is supplied in trays with a quantity of 25 per tray.
| Qty | Low | High |
|---|---|---|
| 500+ | $35.45 | $35.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
200 positions (100 differential pairs).
1.3 mm [0.051 in].
1 A.
48 VAC.
Surface Mount - Solder Ball.
0 – 100 °C [32 – 212 °F].
15 mm, 17 mm, 18 mm, 20 mm, 25 mm, 30 mm.
