| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
905 pcs
|
905 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
905 pcs
|
905 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Gender | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Tape & Reel | |
| Termination |

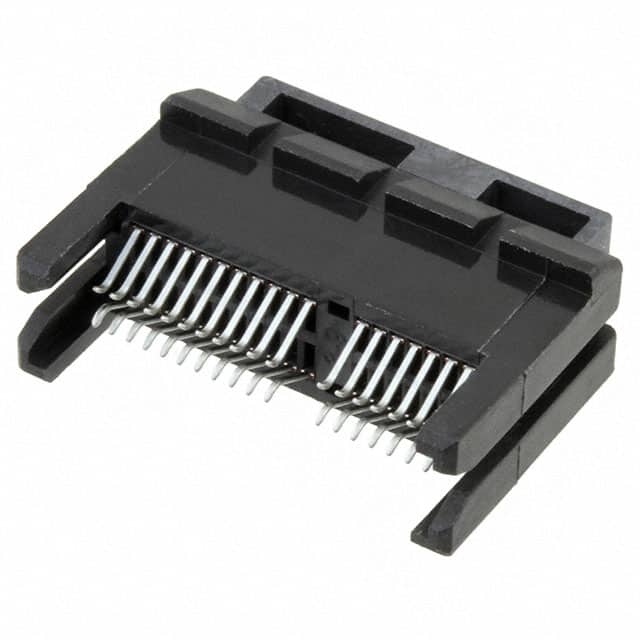

This is a PCI Express female edge card connector manufactured by TE Connectivity, part number 5-1734857-5. It features 36 positions arranged in 2 rows with a 1.00mm pitch, supporting dual readout for reliable signal transmission. The connector is designed for board edge, straddle mount installation and uses solder termination for secure connections.
Contacts are made of phosphor bronze with a 30µin gold finish, ensuring excellent conductivity and corrosion resistance. The housing is black and includes features such as a card extender and locking ramp for secure card retention. The operating temperature range is -40°C to 85°C, making it suitable for a wide range of environments.
RoHS3 compliant and REACH unaffected, this connector is designed for applications requiring PCI Express interface connectivity, including expansion cards, motherboards, and industrial computing systems. The connector accepts a card thickness of 0.062" (1.57mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $5.08 | $5.08 |
| 10+ | $4.45 | $4.45 |
| 25+ | $4.13 | $4.13 |
| 50+ | $4.09 | $4.09 |
| 70+ | $3.58 | $3.58 |
| 280+ | $3.45 | $3.45 |
| 560+ | $3.32 | $3.32 |
| 1,050+ | $3.24 | $3.24 |
| 2,520+ | $3.13 | $3.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36 positions.
1.00mm (0.039").
Board Edge, Straddle Mount.
Female.
Gold with 30µin thickness.
-40°C to 85°C.
Card Extender and Locking Ramp.
