| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination |

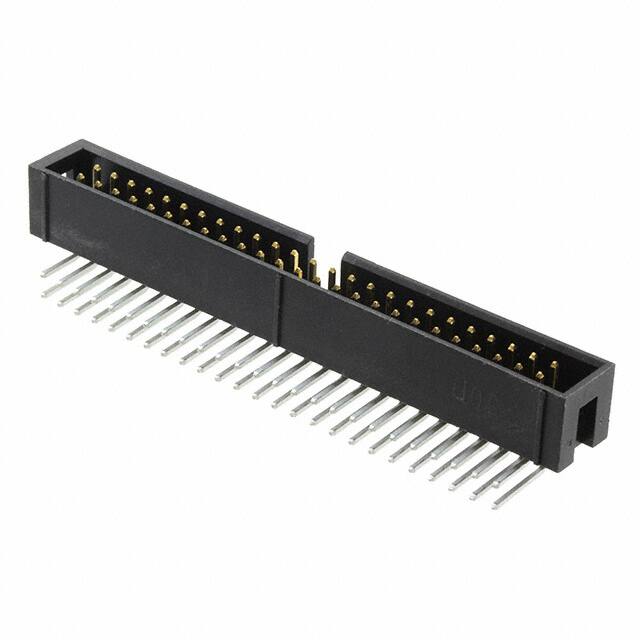

The TE Connectivity 5-1634689-0 is a 50-position, 2-row, right-angle header designed for board-to-cable/wire applications. It features a 2.54mm pitch and a shrouded 4-wall design with a keying slot for polarization. The contacts are made of brass with a tin finish (10µin thickness) and are rated for 3A continuous current. The insulation is black polyamide (PA6T/Nylon 6T) with a UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C. Mounting is through-hole, right-angle, with solder termination. This header is suitable for industrial control, consumer electronics, and other applications requiring a reliable, high-density interconnection.
50 positions, all loaded, in 2 rows.
2.54mm (0.100").
3A.
Through hole, right angle.
-40°C to 105°C.
Tin, 10.0µin (0.25µm) thickness.
Yes, shrouded - 4 wall with keying slot.
