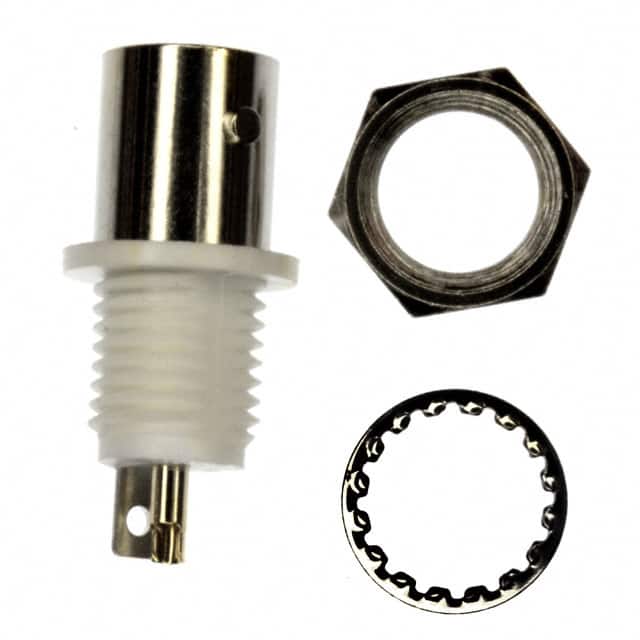

The 5-1634504-2 is a BNC RF connector jack from TE Connectivity (Greenpar brand). It features a female socket with 75 Ohm impedance, suitable for applications up to 2 GHz. The connector is designed for panel mount installation with a bulkhead rear side nut and bayonet lock fastening. Contact termination is via solder cup, and shield termination is solder. The connector is isolated and includes a ground tab.
Construction includes a zinc body with nickel plating, a phosphor bronze center contact with gold plating, and a dielectric made of polyester (PBT). The connector is rated for commercial grade, is not sealed or polarized, and includes body insulation. The housing color is silver and white.
Mechanical specifications include a panel cutout of 8.7mm x 9.6mm D-Shape, panel thickness range of 1.50 to 3.20 mm, and a flange diameter of 12.7 mm. Hardware is included for mounting. The connector supports wave solder processes up to 260°C, 240°C, and 265°C.
Environmental compliance includes RoHS and ELV compliance as stated in the datasheet, with MSL Level 1 Unlimited and REACH unaffected status noted. The operating temperature maximum is 85°C.
75 Ohm.
2 GHz.
Panel mount with bulkhead rear side nut, front mount direction.
Solder cup for center contact, solder for shield termination.
85°C.
Body: zinc with nickel plating. Center contact: phosphor bronze with gold plating. Dielectric: polyester (PBT).
Yes, according to the datasheet it is RoHS compliant, though not separately verified.
