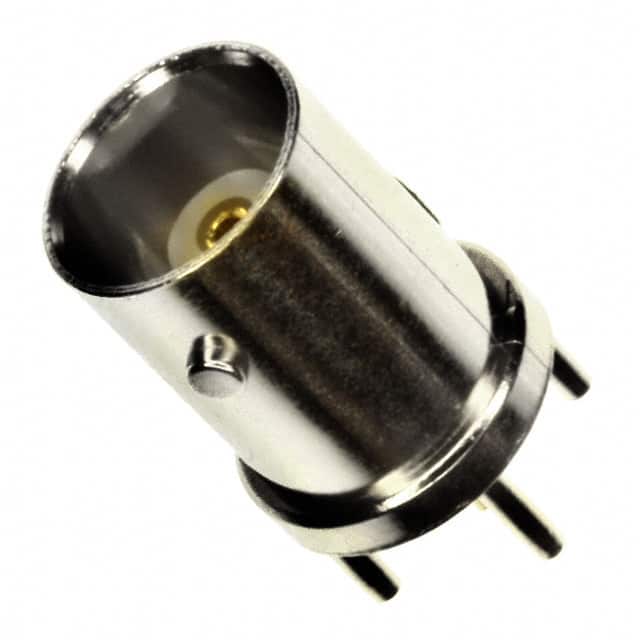

The TE Connectivity 5-1634503-1 is a BNC jack connector designed for 50 Ohm RF applications. This through hole PCB mount connector features a female socket interface with a bayonet lock coupling mechanism for secure connections. It is rated for frequencies up to 4 GHz, making it suitable for a wide range of commercial RF systems.
The connector is constructed with a zinc body plated with nickel, providing durability and corrosion resistance. The center contact is made of phosphor bronze with gold plating, ensuring reliable signal integrity. The dielectric material is polymethylpentene (PMP), which offers stable electrical performance. It supports PCB termination with hold-down posts and requires a recommended PCB thickness of 3.2 mm.
With a height above the PCB of 13.7 mm and a mounting post length of 4.5 mm, this vertical-mount connector is compact and suitable for space-constrained designs. It is a single-port, unsealed connector with commercial grade rating. The part is packaged in a box.
50 Ohm
4 GHz
BNC Jack, Female Socket
Through Hole
Phosphor Bronze with Gold plating
Zinc body with Nickel plating
No, it is not sealed
