| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
115 pcs
|
115 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Body Plating | |
| Body Style | |
| Cable Group | |
| Center Contact Material | |
| Center Contact Plating | |
| Coaxial Cable Termination Type | |
| Coaxial Cable Type | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Coupling Nut Material | |
| Crimp Type | |
| Dielectric Material | |
| Fastening Type | |
| Frequency | |
| Gender | |
| Grade | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Packaging Method | |
| Packaging Quantity | |
| Sealed | |
| Shield Termination | |
| Standard Package Quantity |

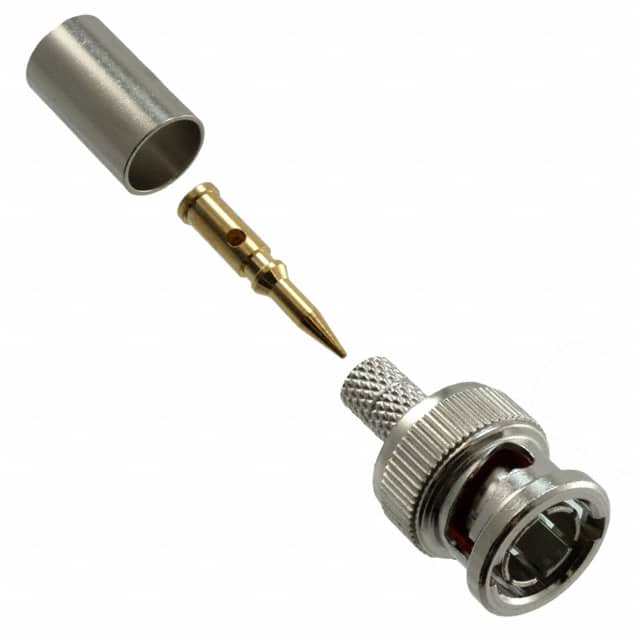

The TE Connectivity 5-1634502-2 is a BNC RF coaxial connector assembly in a plug, male pin configuration. It features a straight body style and is designed for 75 Ohm impedance systems with a frequency rating of 2 GHz. The connector uses a bayonet lock (BNC) fastening type.
Termination is accomplished via hex crimp for both the center contact and the shield, compatible with RG-59B, RG-62A, RG-140, RG-210 and other coaxial cable types. The zinc body has a nickel plating, the center contact is brass with gold plating, and the dielectric is made of polymethylpentene.
This connector is rated for commercial grade applications and is suitable for free-hanging (in-line) mounting. It is not sealed. The part is supplied in a tray packaging of 100 pieces.
75 Ohm.
2 GHz maximum.
RG-59B, 62A, 140, 210, KX25, KX 52, KX 53, KX 6A, URM 90 coaxial cables.
Crimp for both center contact and shield, hex type.
Yes, per the datasheet it is Always EU RoHS/ELV Compliant.
Zinc body with nickel plating; center contact is brass with gold plating.
100 pieces per tray.
