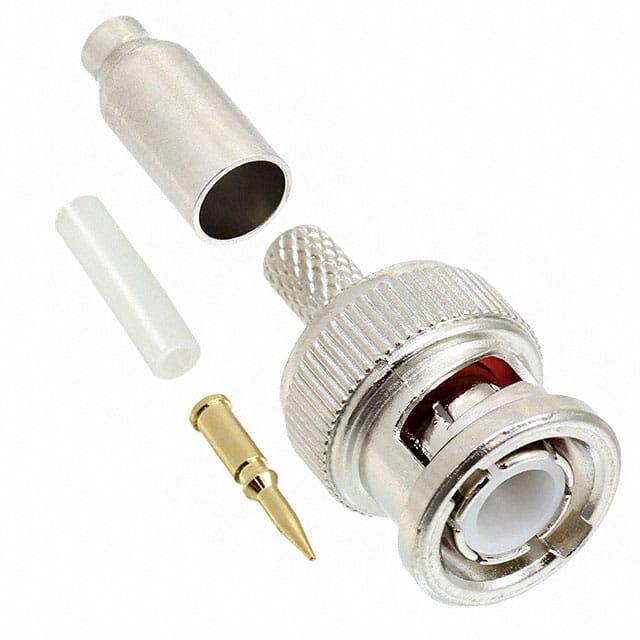

The TE Connectivity 5-1634500-1 is a BNC RF connector configured as a straight plug with a male pin center contact. It features a 50 Ohm impedance and supports operating frequencies up to 4 GHz, making it suitable for a wide range of RF signal applications.
The connector uses a bayonet lock coupling mechanism for quick and secure connections. The center contact is made of brass with gold plating, while the zinc body is nickel plated. The dielectric material is polymethylpentene. Termination is via crimp for both the center contact and shield, using a hex crimp type.
This connector is designed for cable-to-cable connections and is compatible with RG-174A, RG-188A, RG-316, KX3B, KX22A, and URM-95 cable types. It is sealable with a gasket and operates over a temperature range of -55 to 85 °C. Packaging is in bags.
The impedance is 50 Ohms.
The operating frequency is up to 4 GHz.
Compatible cable types include RG-174A, RG-188A, RG-316, KX3B, KX22A, and URM-95.
Both the center contact and shield are terminated using crimp, with a hex crimp type.
The operating temperature range is -55 to 85 °C.
