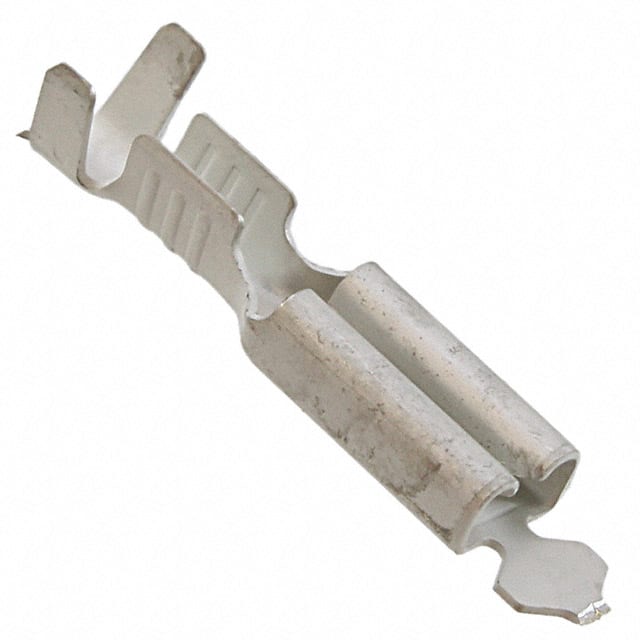

5-160555-2 TE Connectivity 5-160555-2 is a FASTON 110 quick disconnect receptacle terminal for 20-18 AWG wire. It features a 0.110" (2.8mm) mating tab width and crimp termination.
Mfr Part #:

5-160555-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5-160555-2 is a FASTON 110 quick disconnect receptacle terminal for 20-18 AWG wire. It features a 0.110" (2.8mm) mating tab width and crimp termination.
✓ Total Stock: 29,800 pcs
$ Price Range: $0.09 - $0.09

5-160555-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
29,800 pcs
On Request
29800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-160555-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Gender
Insulation
Length
Mating Retention Type
Mounting Type
Operating Temperature Range
SVHC Present
Tab Length
Tab Thickness
Tab Width
Tape & Reel
Terminal Type
Termination
Wire Gauge
View Similar Products (0)

5-160555-2 Description

Short technical summary and product information.

The TE Connectivity 5-160555-2 is a FASTON 110 quick disconnect receptacle terminal designed for 20-18 AWG wire (0.51-1.03 mm²). It accepts a mating tab width of 2.8 mm (0.11 in) and tab thickness of 0.81 mm (0.032 in). The terminal is made of brass with a tin plating, providing good conductivity and corrosion resistance. It features an F-crimp termination with an open barrel and dimple retention for secure mating. The non-insulated, straight orientation terminal is suitable for free-hanging (in-line) applications. It accommodates wire insulation diameters from 2.03 to 3 mm. The operating temperature range is -40 to 110 °C. This terminal is RoHS, REACH, and Low Halogen compliant, and is CSA certified and UL listed. It is supplied in strip/reel packaging with a quantity of 10,000 pieces.

5-160555-2 Quick Information

Product Type: Quick Disconnect Receptacle
Series: FASTON 110
Canonical Name: Quick Disconnects, Receptacle, 20 – 18 AWG Wire Size, .51 – 1.03 mm² Wire Size, Mating Tab Width .11 in [2.8 mm], Straight, Brass, FASTON 110
Subcategory: Receptacle Terminal

5-160555-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Does not contain REACH SVHC (Current ECHA Candidate List: JUNE 2022 (224))

5-160555-2 Estimated Pricing

Qty Low High
10,000+ $0.09 $0.09
30,000+ $0.09 $0.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-160555-2 Features

  • FASTON 110 quick disconnect receptacle.
  • Accepts 20-18 AWG wire.
  • Tin-plated brass contact material.
  • F-crimp termination with open barrel.
  • Operating temperature range -40 to 110°C.

5-160555-2 Applications

  • For wire-to-tab quick disconnect applications.
  • Used in automotive and appliance wiring.
  • Suitable for industrial control panels.
  • Common in consumer electronics.

5-160555-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What wire gauge does this terminal accept?

20-18 AWG (0.51-1.03 mm²).

What is the mating tab width?

2.8 mm (0.11 in).

What is the operating temperature range?

-40 to 110 °C.

Is this terminal insulated?

No, it is non-insulated.

What termination method is used?

Crimp, specifically F-crimp.

What packaging is available?

Strip/Reel of 10,000 pieces.

What compliance certifications does it have?

RoHS, REACH, Low Halogen, CSA certified, UL listed.
