| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

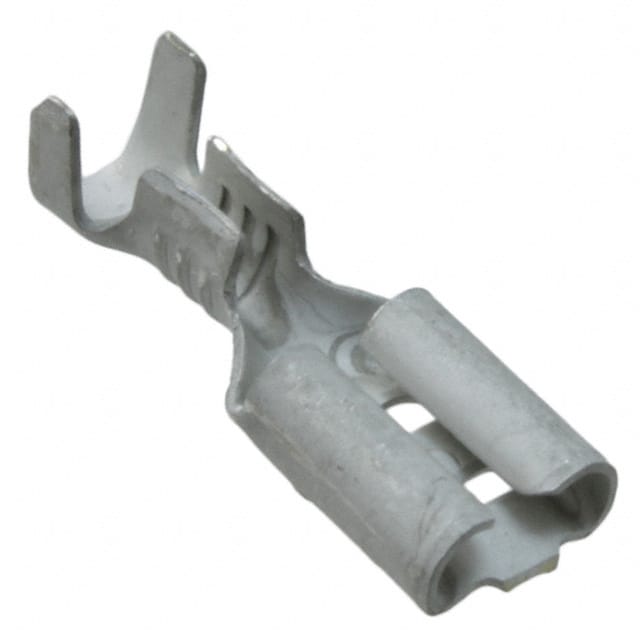

The TE Connectivity 5-160490-2 is a non-insulated quick connect receptacle designed for reliable wire-to-tab connections. It accepts 15.5-20 AWG wire and terminates with a standard crimp barrel. The 0.187" (4.75mm) tab width and 0.032" (0.81mm) tab thickness make it compatible with standard 0.187" quick disconnect tabs. The tin-plated brass contact material provides good conductivity and corrosion resistance. With a length of 16.00mm (0.630"), this female receptacle is suitable for free-hanging (in-line) mounting applications. The non-insulated design is ideal for environments where insulation is not required or where additional insulating sleeving will be applied.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.29 | $0.29 |
| 10+ | $0.25 | $0.25 |
| 25+ | $0.22 | $0.22 |
| 100+ | $0.21 | $0.21 |
| 250+ | $0.19 | $0.19 |
| 1,000+ | $0.17 | $0.17 |
| 2,500+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 15.5-20 AWG wire.
It uses a standard crimp termination.
The tab width is 4.75 mm (0.187 inches).
It is a non-insulated terminal.
The overall length is 16.00 mm (0.630 inches).
