Mfr Part #:

5-160447-2

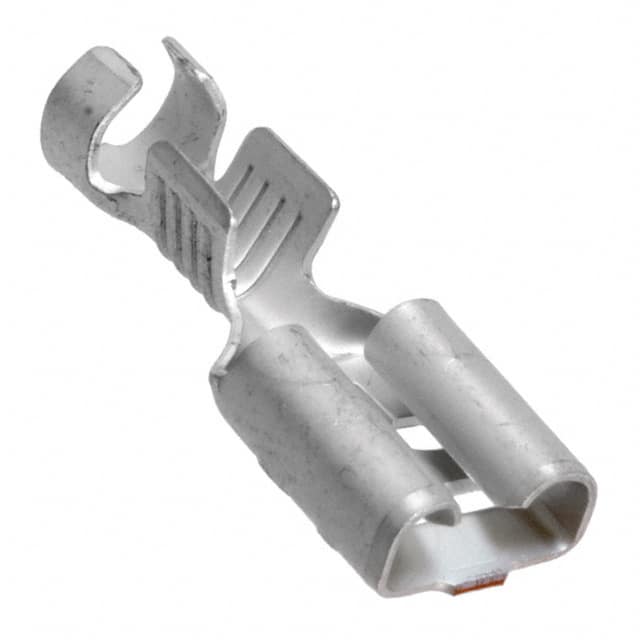

Non-insulated female quick disconnect receptacle for 13-17 AWG wire, mating tab 0.250" x 0.032". Crimp termination, phosphor bronze contact with tin plating.

✓ Total Stock: 5,000 pcs

$ Price Range: $0.32 - $0.58

5-160447-2 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
AA2DE ✓ Non-Authorised Inventory information	5,000 pcs On Request	5000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

5-160447-2 Description

Short technical summary and product information.

The TE Connectivity 5-160447-2 is a FASTIN-FASTON 250 series non-insulated female quick disconnect receptacle. It is designed for free-hanging in-line mounting and accepts 13-17 AWG wire (1.03 – 2.62 mm²) with a wire insulation diameter range of 3 – 3.5 mm. The terminal features an open F-crimp barrel and includes wire insulation support. Mating retention is achieved via a locking lance. The receptacle mates to a tab 6.35 mm (0.250 in) wide and 0.81 mm (0.032 in) thick. The contact is made from phosphor bronze with a tin plating. This terminal is rated for 250 V maximum and operates from -40 to 110 °C. It is UL 94V-2 rated and non-sealable. Packaging is loose piece per carton in quantities of 500. The part conforms to DIN 46340 Part 3, is chamfered, and has a dimple.

5-160447-2 Quick Information

Product Type: Quick Disconnect Terminal

Series: FASTIN-FASTON 250

Canonical Name: FASTIN-FASTON 250 Non-Insulated Female Quick Disconnect Receptacle

Subcategory: Female Quick Disconnect Terminal

5-160447-2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Does not contain REACH SVHC

5-160447-2 Estimated Pricing

Qty	Low	High
1+	$0.58	$0.58
10+	$0.49	$0.49
25+	$0.44	$0.44
100+	$0.42	$0.42
250+	$0.38	$0.38
1,000+	$0.36	$0.36
2,500+	$0.33	$0.33
5,000+	$0.32	$0.32
10,000+	$0.32	$0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-160447-2 Features

Non-insulated female quick disconnect receptacle.
Accepts 13-17 AWG wire with insulation support.
Crimp termination with open F-crimp barrel.
Phosphor bronze contact with tin plating.
Rated for 250 V and -40 to 110 °C operation.

5-160447-2 Applications

Use in automotive wiring harness applications.
Ideal for power distribution and control circuits.
Suitable for appliance and industrial equipment wiring.
Common in free-hanging in-line quick disconnect systems.

5-160447-2 FAQs

7 frequently asked questions generated from this part’s specifications.

What wire gauge does the 5-160447-2 accept?

It accepts 13-17 AWG wire (1.03 – 2.62 mm²) with insulation diameter 3 – 3.5 mm.

What is the mating tab size for this receptacle?

The mating tab is 6.35 mm (0.250 in) wide and 0.81 mm (0.032 in) thick.

Is this terminal insulated?

No, it is non-insulated.

What is the operating temperature range?

-40 to 110 °C (-40 to 230 °F).

What is the packaging quantity?

500 pieces per carton (loose piece).

What is the voltage rating?

250 V maximum.

What is the contact material and finish?

Phosphor bronze base material with tin plating.

Category	Quick Connects, Quick Disconnect Connectors
Manufacturer Name	TE Connectivity
Contact Finish	Tin
Contact Material	Phosphor Bronze
Gender	Female
Halogen Free	Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material. Also BFR/CFR/PVC Free
Insulation	Non-Insulated
Length	0.799" (20.29mm)
Mating Retention Type	Locking Lance
Mounting Type	Free Hanging (In-Line)
Operating Temperature Range	-40 – 110 °C (-40 – 230 °F)
Tab Length	7.75 mm (0.305 in)
Tab Thickness	0.81 mm (0.032 in)
Tab Width	6.35 mm (0.250 in)
Tape & Reel	No
Terminal Type	Standard
Termination	Crimp
UL Flammability Rating	UL 94V-2
Wire Gauge	13-17 AWG
