| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA Certified | |
| Connection Capacity | |
| Contact Finish | |
| Contact Material | |
| Crimp Type | |
| Gender | |
| Insertion Force | |
| Insulated Wire Support | |
| Insulation | |
| Length | |
| Mounting Type | |
| Overall Length | |
| Packaging Method | |
| Packaging Quantity | |
| Support Style | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Angle | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| UL Rating | |
| Wire Composition | |
| Wire Gauge | |
| Wire Insulation Diameter | |
| Wire Size (mm²) |

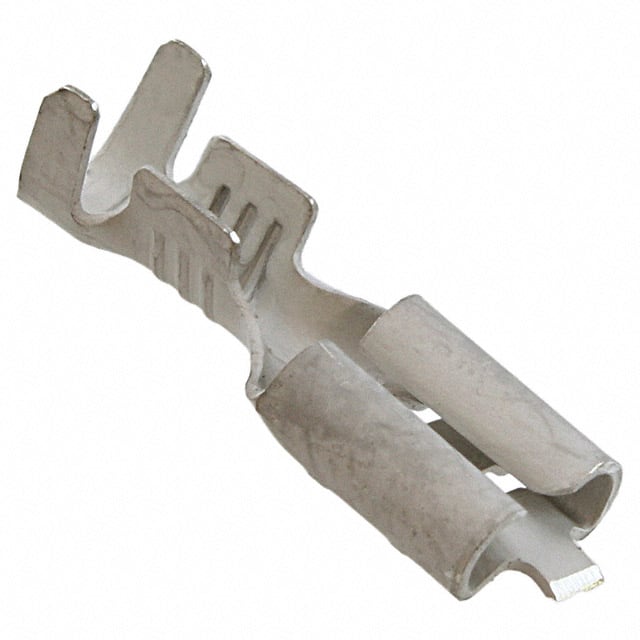

This quick disconnect receptacle is part of TE Connectivity's FASTON 187 series, designed for 4.75mm (0.187") mating tabs with 0.51mm thickness. It accepts 15-20 AWG stranded wire with an insulation diameter of 2.36-3.3mm.
The terminal uses F-crimp termination with insulation support, ensuring secure wire attachment. It is non-insulated but provides fully insulated wire support. The straight terminal angle allows for multiple connections.
The contact is made of brass with tin plating. It is UL listed and CSA certified. Packaging is on reels of 8000 pieces. The component is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 8,000+ | $0.07 | $0.07 |
| 24,000+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The mating tab width is 4.75 mm (0.187 in).
It accepts 15-20 AWG stranded wire.
Crimp termination with F-crimp type.
Yes, it is always EU RoHS/ELV compliant.
8000 pieces per reel.
19 mm (0.748 in) per the datasheet.
Brass contact with tin plating.
