| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
616,000 pcs
|
616000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Type | |
| China RoHS | |
| Contact Finish | |
| Contact Material | |
| Crimp Type | |
| ELV | |
| Extraction Force | |
| Gender | |
| Halogen Free | |
| Insulation | |
| Length | |
| Mating Retention Type | |
| Mounting Style | |
| Mounting Type | |
| Operating Temperature | |
| Overall Length | |
| Packaging Method | |
| Standard Package Quantity | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge | |
| Wire Insulation Diameter | |
| Wire Insulation Support | |
| Wire size |

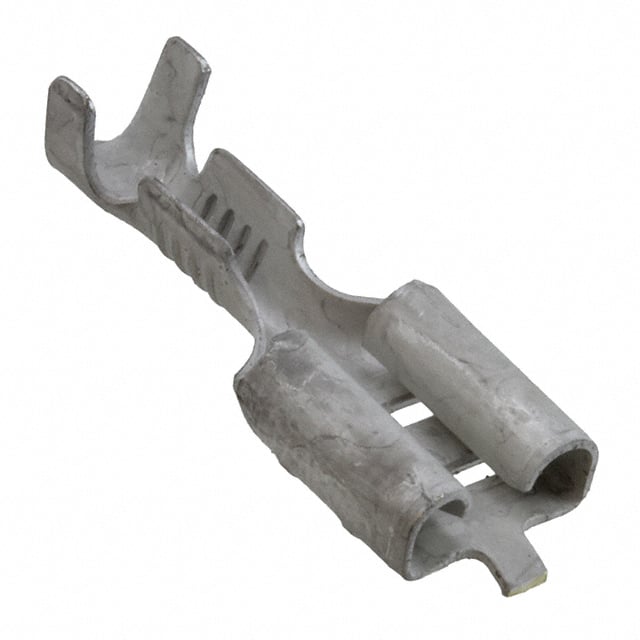

The TE Connectivity 5-160432-4 is a FASTON 250 series non-insulated quick disconnect receptacle designed for reliable wire-to-tab connections. It features a 0.250" (6.35mm) mating tab width and 0.032" (0.81mm) tab thickness, compatible with standard FASTON 250 tabs. The receptacle accepts wire sizes from 15.5 to 20 AWG (0.51 – 1.65 mm²) and supports wire insulation diameters up to 2.3 – 3.3 mm. The contact is made of tin-plated brass with an open barrel F-crimp design, ensuring secure mechanical and electrical termination. It includes wire insulation support for added strain relief. The dimple mating retention type provides an extraction force of 80 N, ensuring a stable connection in vibration-prone environments. The operating temperature range is -40°C to 110°C, making it suitable for automotive, industrial, and consumer applications. The terminal is non-insulated and free-hanging (in-line) mounted. It is packaged in strip/reel form with a standard quantity of 7,000 pieces per reel. The component is RoHS, REACH, ELV, and China RoHS compliant, and is halogen-free.
| Qty | Low | High |
|---|---|---|
| 7,000+ | $0.09 | $0.09 |
| 14,000+ | $0.08 | $0.08 |
| 28,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The tab width is 6.35 mm (0.250 in).
It accepts 15.5-20 AWG wire, corresponding to 0.51 – 1.65 mm².
The operating temperature range is -40°C to 110°C.
No, it is non-insulated.
The contact material is brass with a tin plating finish.
The standard package quantity is 7,000 units per reel.
The extraction force is 80 N.
