| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
464,000 pcs
|
464000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Type | |
| Compatible With Wire & Cable Type | |
| Connection Capacity | |
| Contact Finish | |
| Contact Material | |
| Crimp Type | |
| Extraction Force | |
| Failure Rate | |
| Gender | |
| Insertion Force | |
| Insulation | |
| Insulation Diameter | |
| Length | |
| Length (Overall) | |
| Mating Retention Type | |
| Mating Tab Thickness | |
| Mating Tab Width | |
| Mounting Type | |
| Packaging Type | |
| Product Terminates To | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Orientation | |
| Terminal Type | |
| Termination | |
| Wire Gauge | |
| Wire Insulation Support | |
| Wire size |

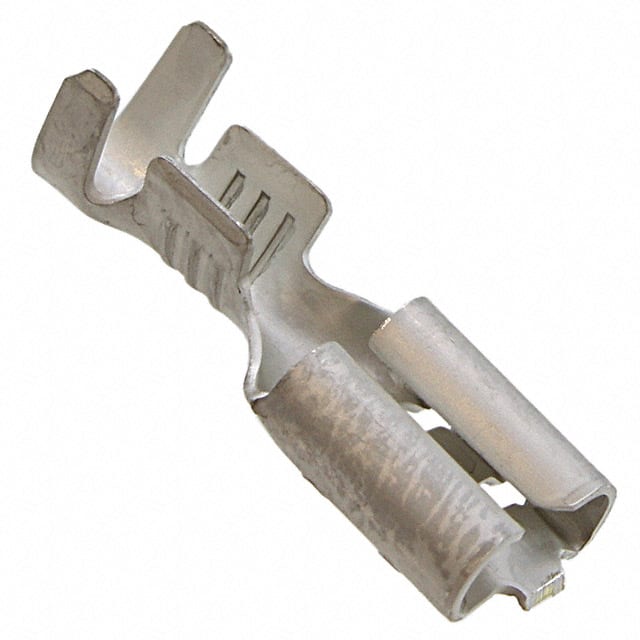

The TE Connectivity 5-160430-7 is a Faston series quick disconnect receptacle designed for reliable wire-to-tab connections. It accepts 15.5-20 AWG wire with a wire size range of 0.51 to 1.65 mm² and features a 0.187" (4.75mm) tab width and 0.032" (0.81mm) tab thickness.
This non-insulated female terminal uses an F-crimp style with an open barrel and includes wire insulation support. The contact is made of tin-plated brass, offering good conductivity and corrosion resistance. The terminal is rated for a low insertion force and provides a mating retention force of 7.1 kgf via a dimple retention feature.
The part is supplied in strip/reel packaging and is intended for free hanging (in-line) mounting. It is RoHS compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 8,000+ | $0.07 | $0.07 |
| 24,000+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 15.5-20 AWG wire, corresponding to a wire size of 0.51 to 1.65 mm².
The tab width is 0.187" (4.75 mm) and the tab thickness is 0.032" (0.81 mm).
No, it is a non-insulated terminal.
It uses a crimp termination with an F-crimp style and open barrel.
The contact is made of brass with a tin plating finish.
The overall length is 15.00 mm (0.591").
The mating retention type is dimple, with an extraction force of 7.1 kgf.
