| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

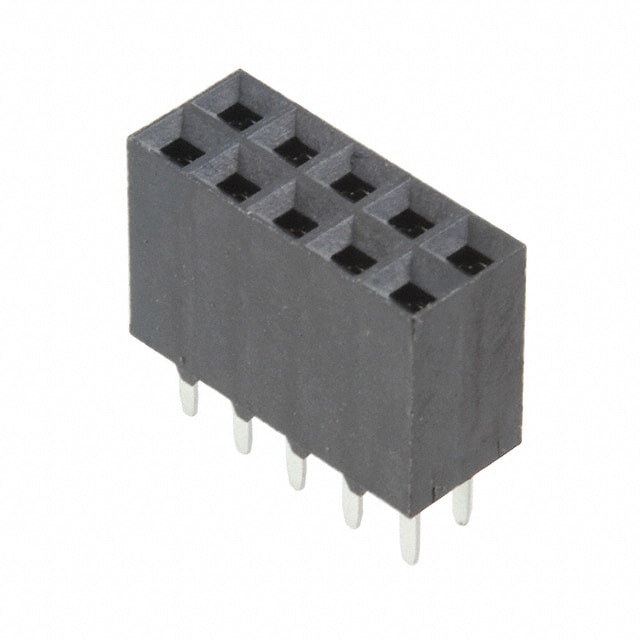

The TE Connectivity 5-147424-5 is a 10-position receptacle connector designed for board-to-board or cable applications. It features a 2.54mm pitch and 2.54mm row spacing (dual row), with through hole mounting and solder termination. The contacts are female sockets with a tin finish (10.0µin / 0.25µm thickness). The housing is black with an insulation height of 8.13mm and a contact length of 2.92mm. The push-pull fastening type ensures secure mating. The connector is rated for 2A current and has an operating temperature range of -65°C to 125°C. The insulation material has a flammability rating of UL94 V-0. This product is part of the AMPMODU II family.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.69 | $2.69 |
| 10+ | $2.37 | $2.37 |
| 25+ | $2.31 | $2.31 |
| 90+ | $2.12 | $2.12 |
| 540+ | $1.93 | $1.93 |
| 1,035+ | $1.51 | $1.51 |
| 2,520+ | $1.49 | $1.49 |
| 5,040+ | $1.35 | $1.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54mm (0.100").
2A.
Through hole.
-65°C to 125°C.
Tin, 10.0µin (0.25µm).
UL94 V-0.
