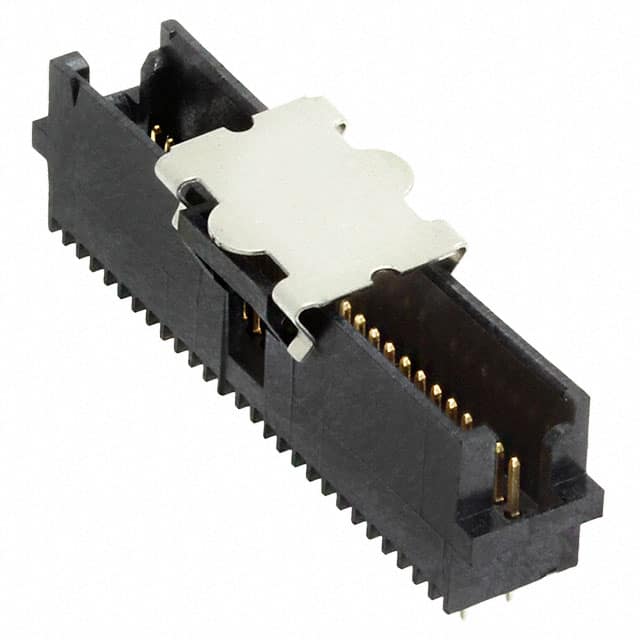

The TE Connectivity 5-147380-1 is a 50-position, dual-row, vertical header from the AMPMODU System 50 family. It features a 1.27mm pitch with 2.54mm row spacing, making it suitable for high-density board-to-board or cable-to-board interconnections. The header has a through hole mounting style with solder termination and is shrouded on all four sides for mating alignment and protection.
The contact system uses copper alloy posts with gold plating on contact areas (0.76µm min) and tin-lead plating on solder tails (3.81µm min), over a 1.27µm nickel underplating. The housing is black LCP (Liquid Crystal Polymer) with a UL94 V-0 flammability rating, and the insulation height is 9.91mm. The overall contact length is 8.26mm with a contact tail length of 3.18mm.
This header is rated for 30VAC and operates over a temperature range of -65°C to 105°C. It includes a keying slot for polarization and an aluminum vacuum cover designed for 4mm diameter pick-and-place nozzles, to be removed after soldering. Packaging is tape and reel per EIA-481 specifications, facilitating automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.50 | $29.50 |
| 10+ | $29.29 | $29.29 |
| 25+ | $29.21 | $29.21 |
| 50+ | $29.19 | $29.19 |
| 100+ | $29.05 | $29.05 |
| 250+ | $17.70 | $17.70 |
| 500+ | $13.75 | $13.75 |
| 1,000+ | $11.92 | $11.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions, all loaded, arranged in 2 rows.
1.27mm (0.050 inch) pitch.
30VAC.
Through hole with solder termination.
-65°C to 105°C.
Copper alloy contacts with gold plating on contact areas (0.76µm min) and tin-lead on solder tails (3.81µm min), over 1.27µm nickel underplating.
LCP (Liquid Crystal Polymer) with UL94 V-0 flammability rating, color black.
