| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
69 pcs
|
69 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

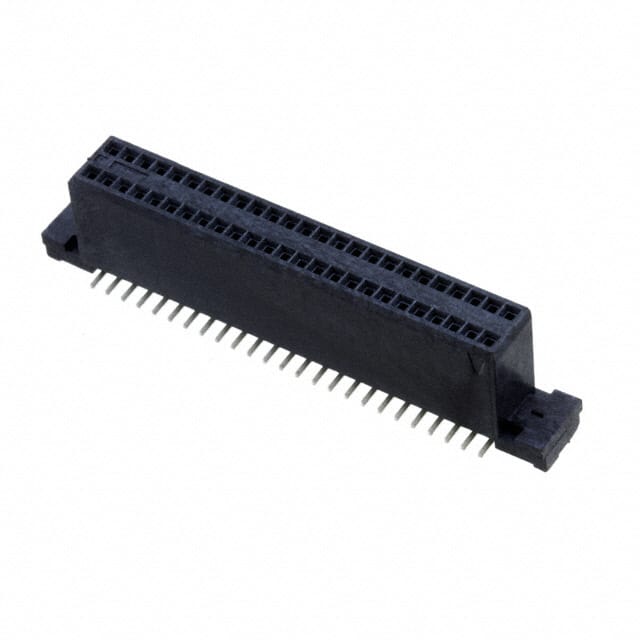

The 5-147378-5 is a 50-position, 2-row board-to-board receptacle from TE Connectivity designed for surface mount applications. It features a 1.27mm (0.050") pitch with 0.100" (2.54mm) row spacing, making it suitable for high-density interconnection in compact electronic assemblies. The connector uses tin-plated female sockets with a contact finish thickness of 30.0µin (0.76µm) and a push-pull fastening mechanism. It is rated for 30VAC operation and can operate over a temperature range of -65°C to 105°C. The insulation height is 9.40mm (0.370"), and the connector supports mated stacking heights of 11.94mm and 13.08mm. The housing is black with UL94 V-0 flammability rating, and the part includes a pick-and-place feature for automated assembly. Termination is via solder, and all 50 positions are loaded.
50 positions.
1.27mm (0.050 inches).
30VAC.
Surface mount.
-65°C to 105°C.
Tin with 30µin (0.76µm) thickness.
11.94mm and 13.08mm.
