Mfr Part #:

5-147377-2

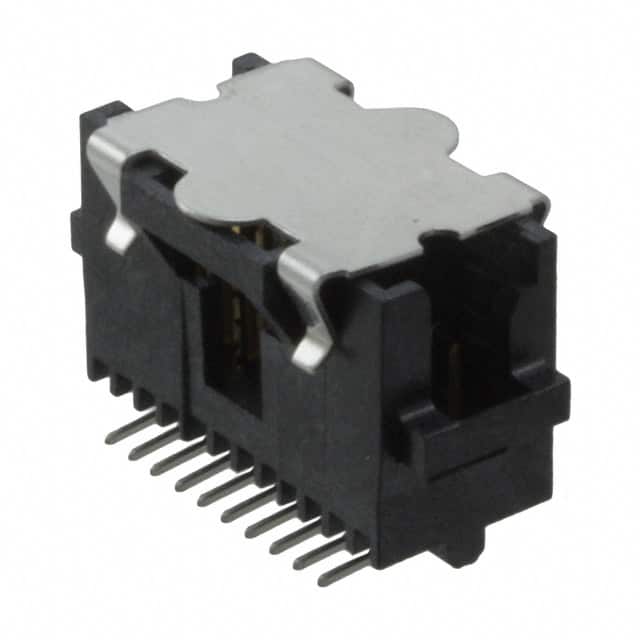

CONN HEADER SMD 20POS 1.27MM. This is a 20-position, 2-row, shrouded header with tin contacts, rated for 30VAC and -65°C to 105°C.

✓ Total Stock: 170 pcs

$ Price Range: $4.64 - $8.38

5-147377-2 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Husky International Electronic ✓ Non-Authorised Inventory information	170 pcs On Request	170 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

5-147377-2 Description

Short technical summary and product information.

This product is a 20-position, 2-row, shrouded header (male pin) connector from TE Connectivity. It features a 1.27mm pitch and 2.54mm row spacing, designed for board-to-board or cable applications. The contact shape is circular with a length of 3.18mm, finished in tin with a thickness of 30.0µin (0.76µm) over copper alloy.

The header is fully shrouded with a 4-wall design and includes a latch holder for secure fastening. The insulation material is polyphthalamide (PPA) with a black color and a UL94 V-0 flammability rating. The operating temperature range is -65°C to 105°C, and the voltage rating is 30VAC.

This component is surface mount with solder termination. The insulation height is 11.05mm. It includes a pick and place feature for automated assembly. The contact material is copper alloy. All 20 positions are loaded.

5-147377-2 Quick Information

Product Type: Header, Male Pins

Canonical Name: TE Connectivity 5-147377-2 Header, Male Pins, 20 Position, 1.27mm Pitch, Surface Mount

Subcategory: Shrouded Header

5-147377-2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5-147377-2 Estimated Pricing

Qty	Low	High
1+	$8.38	$8.38
10+	$7.58	$7.58
25+	$7.16	$7.16
50+	$6.98	$6.98
100+	$6.63	$6.63
250+	$5.94	$5.94
500+	$5.59	$5.59
1,000+	$4.89	$4.89
2,500+	$4.64	$4.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-147377-2 Features

20-position, 2-row shrouded header design.
1.27mm pitch with 2.54mm row spacing.
Surface mount with pick and place feature.
Tin plated copper alloy contacts.
Rated for 30VAC and -65°C to 105°C.

5-147377-2 Applications

Board-to-board interconnection in compact devices.
Cable-to-board connections requiring secure latching.
Automated assembly with pick-and-place compatibility.
Industrial control systems with moderate temperature range.

5-147377-2 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this header have?

20 positions.

What is the pitch of this connector?

1.27mm (0.050").

What is the voltage rating of this header?

30VAC.

What is the mounting type of this header?

Surface mount (SMD) with solder termination.

What is the operating temperature range?

-65°C to 105°C.

What is the contact finish?

Tin with a thickness of 30.0µin (0.76µm).

How many rows does this header have?

2 rows.

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	3.18mm (0.125")
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Pick and Place
Insulation Color	Black
Insulation Height	11.05mm (0.435")
Insulation Material	Polyphthalamide (PPA)
Lead Spacing	1.27mm (0.050")
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-65°C ~ 105°C
Pitch	1.27mm (0.050")
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	Yes
Termination	Solder
Termination Style	Solder
Voltage Rating	30VAC
