| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

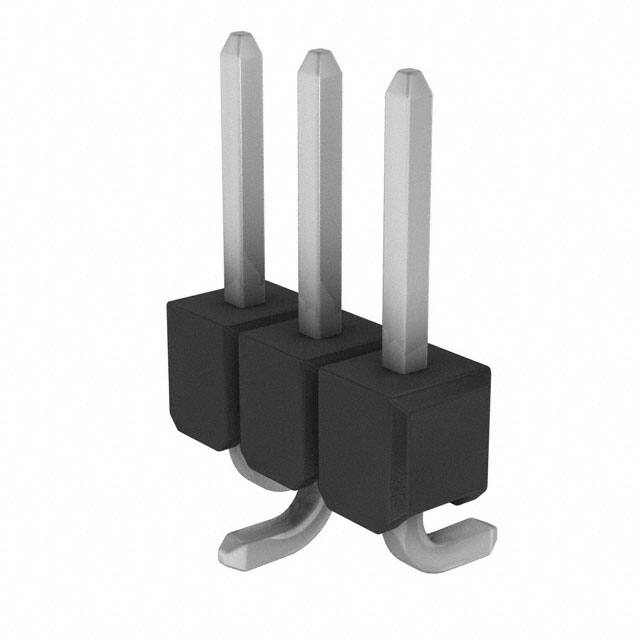

The TE Connectivity 5-147291-5 is a 3-position single-row unshrouded male pin header from the AMPMODU Breakaway series. It features a 2.54mm (0.100") pitch and is designed for surface mount soldering. The header has all 3 positions loaded, with square pins made of copper alloy and plated with 100µin (2.54µm) of tin. The insulation is black liquid crystal polymer (LCP) with a height of 2.29mm. The connector is unshrouded with push-pull fastening, suitable for board-to-board or cable connections. It includes a pick and place feature for automated assembly. The product is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). This header is suitable for applications requiring a compact, reliable interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.34 | $4.34 |
| 10+ | $3.68 | $3.68 |
| 100+ | $3.13 | $3.13 |
| 250+ | $2.88 | $2.88 |
| 500+ | $2.83 | $2.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 3 positions, all loaded.
The pitch is 2.54mm (0.100").
Surface mount.
Tin, with 100µin (2.54µm) thickness.
Unshrouded.
Liquid Crystal Polymer (LCP), black.
Push-pull.
