| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS 2 | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| EU ELV | |
| Fastening Type | |
| Features | |
| Halogen Content | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

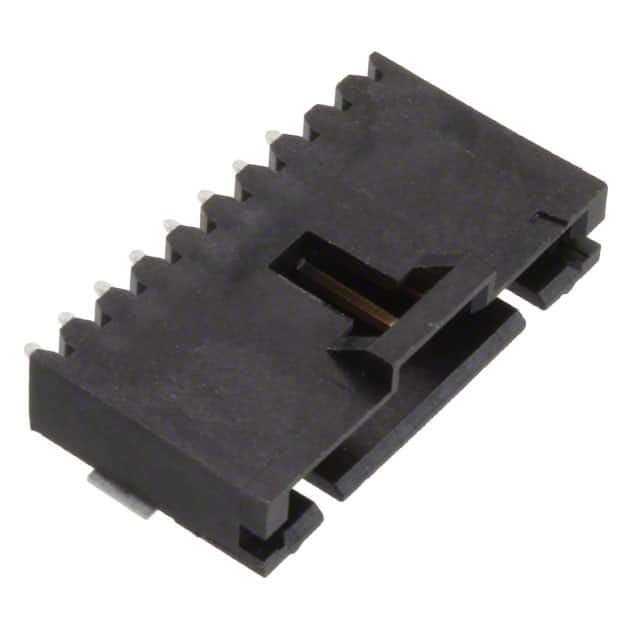

The TE Connectivity 5-147278-7 is an 8 position single row header with male square pins on a 2.54mm pitch. It features a surface mount right angle termination and a shrouded 4-wall design with latch holder for secure mating. The header is rated for 3A and operates over a temperature range of -65°C to 105°C.
The contacts are made of brass with a tin finish (15.0µin thickness) and the insulator is black thermoplastic with a UL94 V-0 flammability rating. Additional features include board lock, keying slot, and solder retention for reliable assembly. This connector is suitable for board-to-board or cable applications.
The part is RoHS, EU ELV, and China RoHS 2 compliant, does not contain REACH SVHC, and is low halogen. It is reflow solder capable to 260°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.40 | $5.40 |
| 10+ | $4.59 | $4.59 |
| 100+ | $3.90 | $3.90 |
| 300+ | $3.68 | $3.68 |
| 600+ | $3.40 | $3.40 |
| 900+ | $3.20 | $3.20 |
| 2,400+ | $3.12 | $3.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 8 positions in a single row.
The current rating is 3A.
Surface mount, right angle.
Yes, it is EU RoHS Directive 2011/65/EU compliant.
