| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

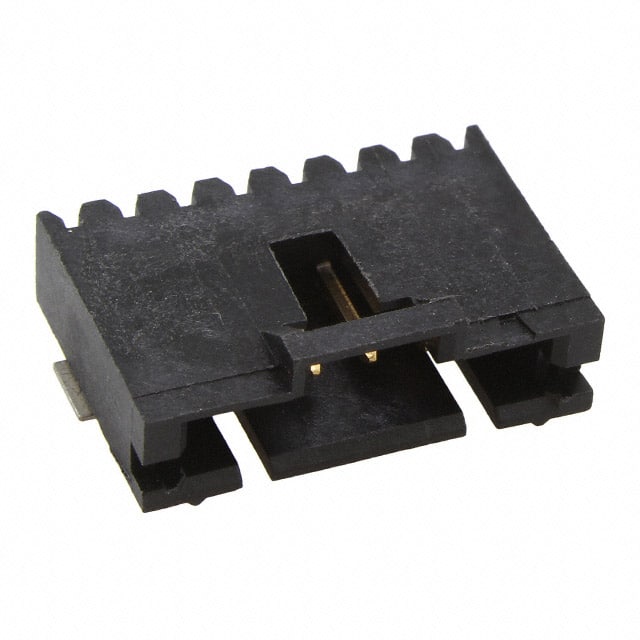

The TE Connectivity AMPMODU MTE header 5-147278-5 is a 6-position, single-row, shrouded header designed for board-to-board or cable applications. It features a 2.54mm pitch and surface mount right angle termination, making it suitable for compact PCB designs.
The header is constructed with a black thermoplastic insulator rated UL94 V-0 and brass male square pins with a tin contact finish of 15.0µin. It includes board lock, keying slot, and solder retention features for secure mounting. The operating temperature range is -65°C to 105°C, and it is rated for 3A current.
This component is part of the AMPMODU MTE series and is RoHS3 compliant (unverified). It is available in tape and reel packaging for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.40 | $5.40 |
| 10+ | $4.91 | $4.91 |
| 25+ | $4.65 | $4.65 |
| 50+ | $4.62 | $4.62 |
| 300+ | $3.79 | $3.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions in a single row, all loaded.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A.
It is surface mount with right angle orientation.
The operating temperature range is -65°C to 105°C.
The contact material is brass with a tin finish of 15.0µin (0.38µm).
Yes, it is a shrouded header with 4-wall shrouding.
