| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,425 pcs
|
1425 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

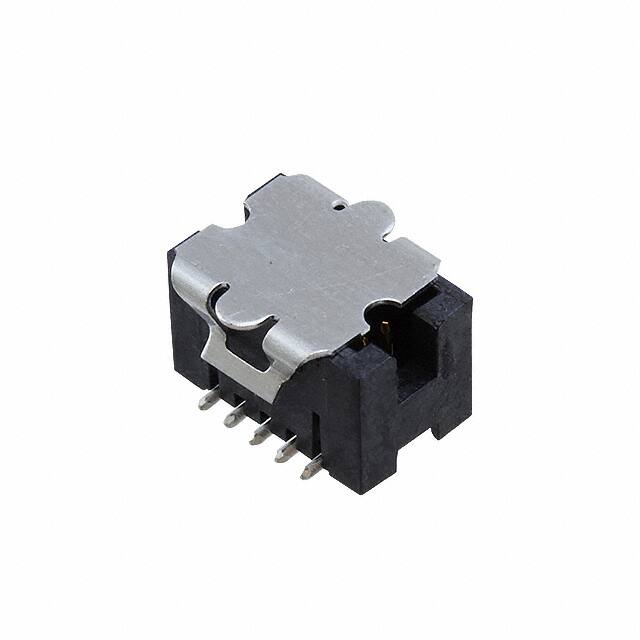

The TE Connectivity 5-147121-1 is a 10-position, 2-row header with a 1.27mm pitch, designed for surface mount soldering. It features male pin contacts made of phosphor bronze with a tin finish (30.0µin) and a circular contact shape. The connector is fully shrouded with a 4-wall design and uses a push-pull fastening type, making it suitable for board-to-board applications.
The insulation is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The header is rated for 0.5A per contact and operates over a temperature range of -65°C to 105°C. It includes a pick and place feature for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1,900+ | $6.45 | $6.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions, all loaded, in 2 rows.
The pitch is 1.27mm (0.050 inches).
It is rated for 0.5A per contact.
It is a surface mount connector with solder termination.
The operating temperature range is -65°C to 105°C.
RoHS status is listed as RoHS3 compliant, but this is unverified.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
