| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
165 pcs
|
165 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

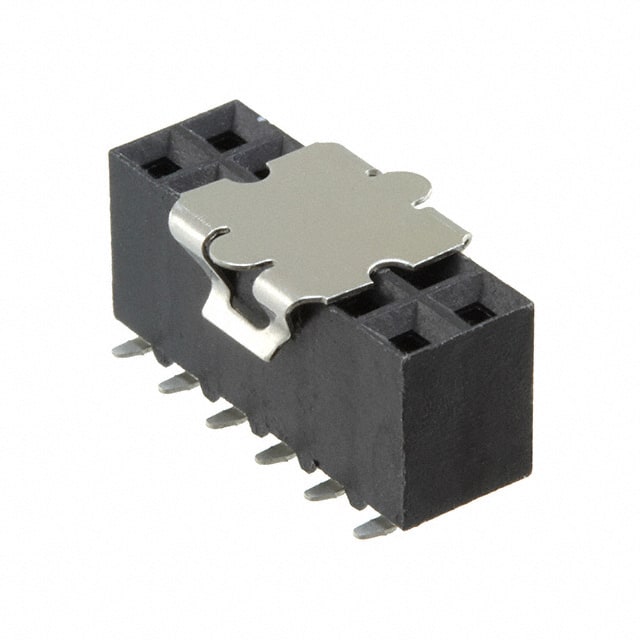

The TE Connectivity 5-147105-6 is a 12 position female socket receptacle designed for board-to-board or cable applications. It features a 2.54mm pitch and 2.54mm row spacing, with a push-pull fastening mechanism. The connector is surface mount with solder termination, and is rated for 2A current. The insulation is black, with a flammability rating of UL94 V-0. Operating temperature range is -65°C to 125°C. The contact finish is tin with a thickness of 30.0µin. This part is pick-and-place compatible, suitable for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.13 | $4.13 |
| 10+ | $3.51 | $3.51 |
| 25+ | $3.50 | $3.50 |
| 100+ | $2.98 | $2.98 |
| 250+ | $2.84 | $2.84 |
| 500+ | $2.42 | $2.42 |
| 1,000+ | $2.41 | $2.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions, all loaded.
2.54mm (0.100").
2A.
Surface mount.
-65°C to 125°C.
Tin, 30.0µin thickness.
UL94 V-0.
