| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA | |
| China RoHS 2 Directive MIIT Order No 32, 2016 | |
| Circuit Application | |
| Connector Contact Load Condition | |
| Connector System | |
| Connector Type | |
| Contact Base Material | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Mating Area Plating Material | |
| Contact Mating Area Plating Material Thickness | |
| Contact Shape | |
| Contact Type | |
| Contact Underplating Material | |
| Current Rating (Amps) | |
| EU ELV Directive 2000/53/EC | |
| EU RoHS Directive 2011/65/EU | |
| Fastening Type | |
| Header Type | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Alignment | |
| Mating Square Post Dimension | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| PCB Contact Termination Area Plating Material | |
| PCB Mount Alignment | |
| PCB Mount Retention | |
| PCB Thickness Recommended | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Primary Product Color | |
| Sealable | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Post & Tail Length | |
| UL | |
| UL Flammability Rating |

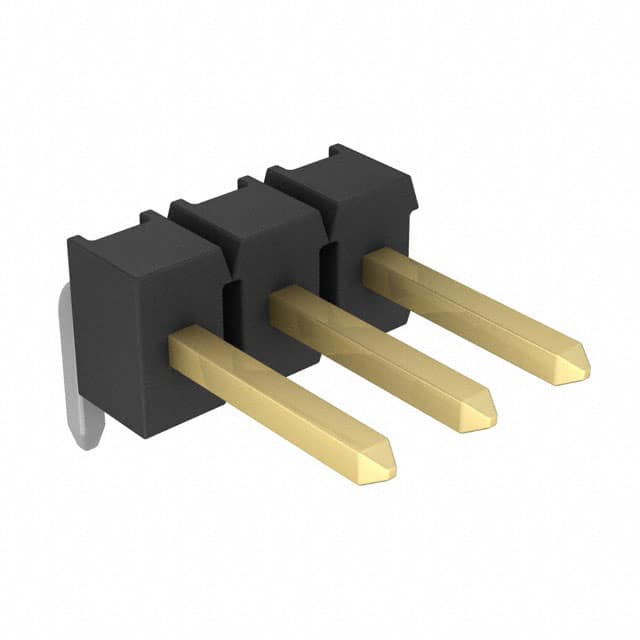

The TE Connectivity AMPMODU breakaway header (5-146304-3) is a 3-position, single-row, right-angle PCB mount header designed for board-to-board or cable connections. It features a 2.54mm (0.100") pitch and unshrouded square pins with a mating square post dimension of 0.64mm.
Electrical specifications include a current rating of 3A and an operating temperature range of -65°C to 105°C. The housing is made of black thermoplastic with UL94 V-0 flammability rating, and contacts are phosphor bronze with gold plating on the mating area and tin-lead on the termination area. Contact finish thickness is 0.76µm (30µin) overall.
Mechanical features include through-hole solder termination, right-angle orientation, and push-pull fastening. The insulation height is 3.50mm, and the termination post length is 3.05mm. It is supplied in carton packaging of 500 pieces and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 10,000+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 3 positions in a single row.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A.
It uses through hole, right angle mounting.
The operating temperature range is -65°C to 105°C.
The contact mating area is plated with gold, 0.762µm thick.
RoHS compliance is stated as RoHS3 compliant, but unverified.
