| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,120 pcs
|
3120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
930 pcs
|
930 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector System | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| PCB Mount Retention | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Method |

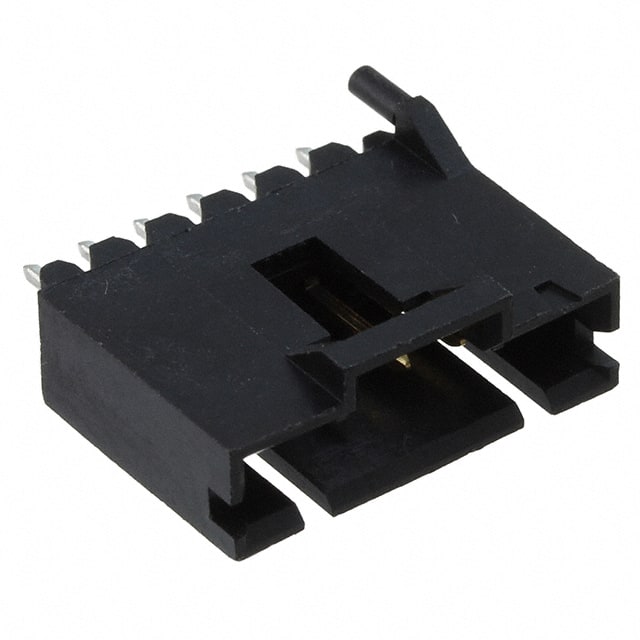

The TE Connectivity AMPMODU MTE 5-104809-5 is a 6 position, single row, 2.54mm pitch fully shrouded header designed for wire-to-board applications. It features a through hole solder termination and gold plated mating contacts with a thickness of 0.38µm, ensuring reliable signal transmission. The header is constructed with a black thermoplastic insulator rated UL94 V-0 and brass contacts with tin plated termination areas. It includes board guide and keying slot features, a latch holder fastening system, and locating posts for PCB alignment. Rated for 3A current and 600V dielectric withstanding voltage, it operates over a temperature range of -65°C to 105°C. This header is suitable for board-to-board or cable connections and is part of the AMPMODU MTE series.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.67 | $2.67 |
| 10+ | $2.52 | $2.52 |
| 30+ | $1.99 | $1.99 |
| 120+ | $1.83 | $1.83 |
| 270+ | $1.74 | $1.74 |
| 510+ | $1.65 | $1.65 |
| 1,020+ | $1.54 | $1.54 |
| 2,520+ | $1.46 | $1.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions in a single row.
2.54mm (0.100").
3A maximum.
Through hole solder.
-65°C to 105°C.
Brass contacts with gold plating on the mating area (0.38µm) and tin on the termination area.
Yes, fully shrouded with 4 walls and a latch holder fastening system.
