| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,716 pcs
|
1716 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

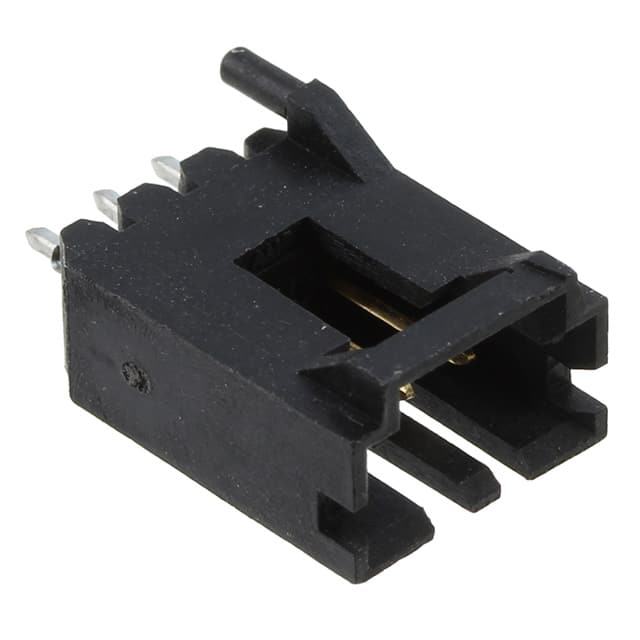

The TE Connectivity 5-104809-2 is a 3-position, single-row, vertical PCB mount header from the AMPMODU MTE series. It features a 2.54mm pitch and a fully shrouded design with four walls, providing protection to the contacts. The header is through-hole mounted and has a latch holder for secure mating. Contacts are made of brass with gold plating on the mating area (15µin) and tin plating on the termination area. The insulation is black thermoplastic with UL94 V-0 flammability rating. The operating temperature range is -65°C to 105°C. It is rated for 3A current. Key features include board guide and keying slot for proper alignment. The overall contact length is 13.84mm. This header is suitable for wire-to-board or board-to-board applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.45 | $1.45 |
| 10+ | $1.27 | $1.27 |
| 25+ | $0.93 | $0.93 |
| 104+ | $0.93 | $0.93 |
| 260+ | $0.85 | $0.85 |
| 520+ | $0.81 | $0.81 |
| 1,040+ | $0.78 | $0.78 |
| 2,548+ | $0.67 | $0.67 |
| 5,044+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.54mm.
3A.
Dielectric withstanding voltage 600V.
Through-hole.
-65°C to 105°C.
Gold on mating area, tin on termination.
