| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,680 pcs
|
1680 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
71 pcs
|
71 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

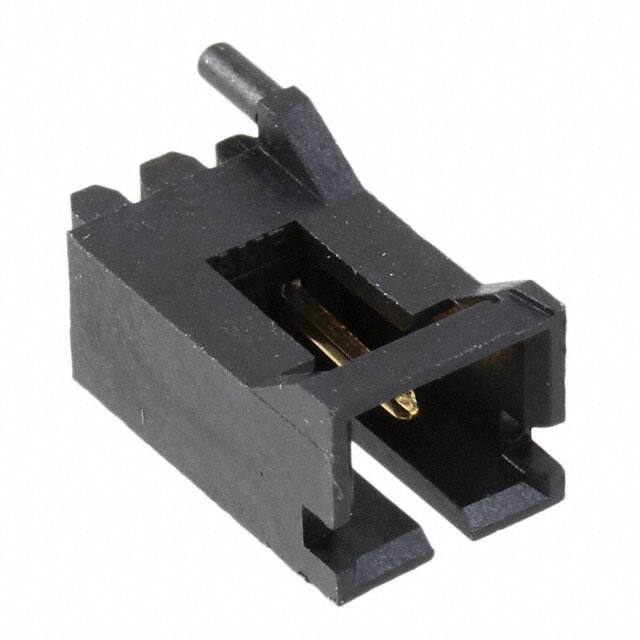

The TE Connectivity 5-104809-1 is a 2-position, single row, shrouded header from the AMPMODU MTE family. It features a 2.54mm (0.100") pitch and is designed for through hole mounting with press-fit or solder termination. The header has a 4-wall shroud with a latch holder fastening type, providing secure mating.
The contacts are made of brass with a tin finish of 15.0µin (0.38µm) and have a square contact shape. The overall contact length is 0.545" (13.84mm) with a contact length of 5.84mm (0.230"). The insulation is black thermoplastic with a flammability rating of UL94 V-0 and an insulation height of 13.60mm (0.535").
This header is suitable for board-to-board or cable applications and includes features such as a board guide and keying slot. It is rated for 3A current and operates over a temperature range of -65°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 5,112+ | $0.97 | $0.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 2 positions in a single row, all positions loaded.
The current rating is 3A.
Through hole mounting with press-fit or solder termination.
-65°C to 105°C.
Yes, it is RoHS3 compliant.
Tin with a thickness of 15.0µin (0.38µm).
