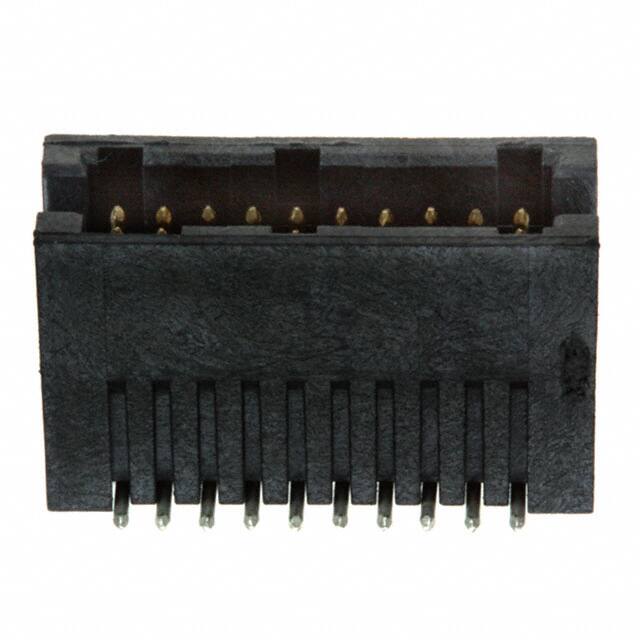

5-104693-2 This is a 20-position, 2-row shrouded male pin header from TE Connectivity with a 1.27mm pitch, designed for surface mount soldering in board-to-board applications.
Mfr Part #:

5-104693-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This is a 20-position, 2-row shrouded male pin header from TE Connectivity with a 1.27mm pitch, designed for surface mount soldering in board-to-board applications.
✓ Total Stock: 234 pcs
$ Price Range: $5.89 - $8.73

5-104693-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
234 pcs
On Request
234 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-104693-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

5-104693-2 Description

Short technical summary and product information.

The TE Connectivity 5-104693-2 is a 20-position, 2-row shrouded male pin header with a 1.27mm pitch and 1.27mm row spacing. It features a 4-wall shrouding for mating alignment and protection. The connector is surface mount compatible with solder termination and a push-pull fastening type.



Constructed with a black liquid crystal polymer (LCP) insulator rated UL94 V-0 and phosphor bronze contacts with a tin finish (30.0µin thickness), the header is rated for 0.5A per contact and operates from -65°C to 105°C. Contact length is 3.05mm and insulation height is 9.33mm. A board lock feature aids secure attachment during assembly.



This header is suited for board-to-board interconnects, supporting dense pin spacing and low-profile design. The 1.27mm pitch allows for high-density routing on the PCB.

5-104693-2 Quick Information

Product Type: Header
Canonical Name: Header 20 Position 2 Row Male Pin Shrouded Surface Mount Connector
Subcategory: Header

5-104693-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5-104693-2 Estimated Pricing

Qty Low High
1+ $8.73 $8.73
25+ $6.96 $6.96
50+ $6.82 $6.82
99+ $6.61 $6.61
264+ $5.89 $5.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-104693-2 Features

  • 20 position 2 row shrouded header.
  • 1.27mm pitch for high density.
  • Surface mount solder termination.
  • Tin plated phosphor bronze contacts.
  • Board lock for secure mounting.

5-104693-2 Applications

  • Board-to-board interconnect applications.
  • High-density PCB connection designs.
  • Surface mount assembly with solder reflow.
  • Applications requiring shrouded pin protection.
  • Low current signal or power connections.

5-104693-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 5-104693-2 have?

20 positions arranged in 2 rows.

What is the pitch of the 5-104693-2?

1.27mm (0.050").

What is the current rating for this connector?

0.5A per contact.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-65°C to 105°C.

What is the contact finish?

Tin with a thickness of 30.0µin (0.76µm).

Is this header shrouded?

Yes, it has a 4-wall shroud.
