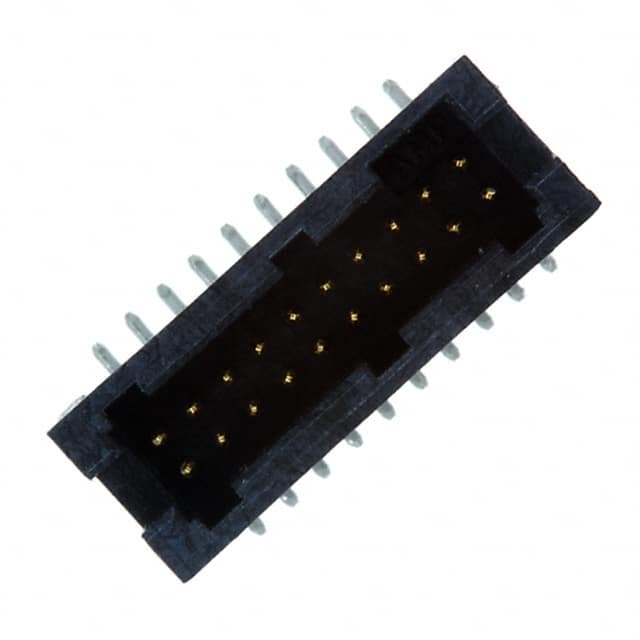

5-104656-2 20-position, 1.27mm pitch surface mount header from TE Connectivity. Features shrouded 4-wall design with board lock, rated for 0.5A per contact.
Mfr Part #:

5-104656-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
20-position, 1.27mm pitch surface mount header from TE Connectivity. Features shrouded 4-wall design with board lock, rated for 0.5A per contact.
✓ Total Stock: 1,320 pcs
$ Price Range: $3.62 - $6.25

5-104656-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,320 pcs
On Request
1320 pcs On Request 1 On Request On Request 1923+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-104656-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

5-104656-2 Description

Short technical summary and product information.

The 5-104656-2 from TE Connectivity is a 20-position, 2-row board-to-board header with a 1.27mm (0.050") pitch and row spacing. It features a shrouded 4-wall design with push-pull fastening and a board lock for secure attachment. Contacts are male pins made of phosphor bronze with 30µin tin plating. The insulator is black liquid crystal polymer (LCP) rated UL94 V-0. Termination is surface mount solder. Rated current is 0.5A per contact with an operating temperature range of -65°C to 105°C. Contact length is 3.05mm and insulation height is 7.57mm. All 20 positions are loaded.

5-104656-2 Quick Information

Product Type: Board-to-Board Header
Canonical Name: TE Connectivity 5-104656-2 Header, Male Pins, 20 Position, 1.27mm Pitch, Surface Mount
Subcategory: Board-to-Board

5-104656-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5-104656-2 Estimated Pricing

Qty Low High
1+ $6.25 $6.25
10+ $5.90 $5.90
25+ $4.88 $4.88
50+ $4.87 $4.87
99+ $4.42 $4.42
528+ $4.01 $4.01
1,023+ $3.91 $3.91
2,508+ $3.62 $3.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-104656-2 Features

  • 20 positions in dual row arrangement.
  • 1.27mm pitch for compact designs.
  • Shrouded 4-wall header with board lock.
  • Surface mount solder termination.
  • Rated for 0.5A per contact over -65°C to 105°C.

5-104656-2 Applications

  • For board-to-board interconnections.
  • Used in space-constrained electronic assemblies.
  • Suitable for applications requiring reliable locking mechanism.
  • Ideal for low-power signal transmission.

5-104656-2 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 5-104656-2 have?

20 positions in 2 rows.

What is the pitch of this header?

1.27mm (0.050").

What is the current rating per contact?

0.5A per contact.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-65°C to 105°C.

What are the contact and insulation materials?

Phosphor bronze contacts with tin plating; LCP insulation with UL94 V-0.
