Mfr Part #:

5-104652-2

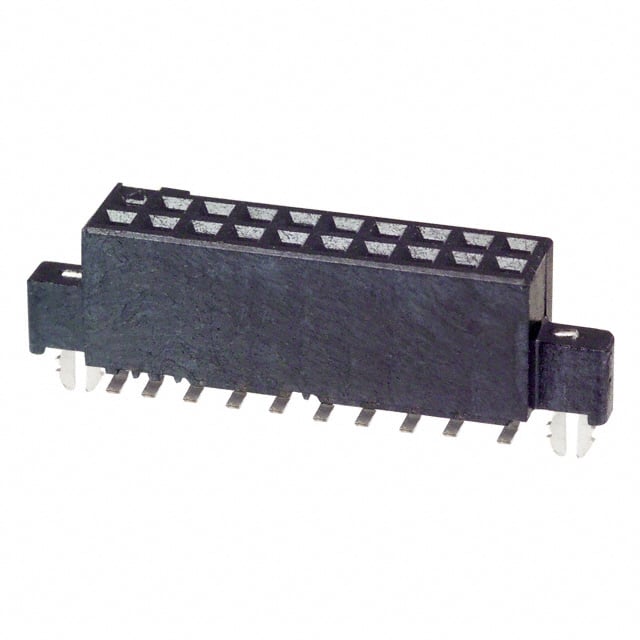

This TE Connectivity receptacle features 20 positions in a 2-row configuration with 1.27mm pitch. It is surface mount with solder termination and push-pull fastening.

✓ Total Stock: 3,261 pcs

$ Price Range: $3.26 - $5.51

5-104652-2 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Tomark Electronics Ltd ✓ Non-Authorised Inventory information	2,572 pcs On Request	2572 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Tokyo Device ✓ Non-Authorised Inventory information	689 pcs On Request	689 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

5-104652-2 Description

Short technical summary and product information.

The TE Connectivity 5-104652-2 is a 20-position receptacle connector designed for board-to-board or cable applications. It features a 1.27mm pitch and 2 rows, with all positions loaded. The connector uses female socket contacts with tin finish and a contact finish thickness of 0.76µm.

This surface mount connector has a push-pull fastening type and includes a board lock for secure attachment. The insulation is black with a height of 4.75mm. It supports mated stacking heights of 6.35mm, 8.13mm, and 9.91mm, providing flexibility in board spacing.

The operating temperature range is -65°C to 105°C, making it suitable for a wide range of environments. The connector is RoHS3 compliant and has an MSL of 1 (unlimited).

5-104652-2 Quick Information

Product Type: Rectangular Connector - Receptacle

Canonical Name: 20 Position 1.27mm Pitch Surface Mount Receptacle Connector

Subcategory: Headers, Receptacles, Female Sockets

5-104652-2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5-104652-2 Estimated Pricing

Qty	Low	High
1+	$5.51	$5.51
10+	$5.48	$5.48
25+	$4.32	$4.32
50+	$4.31	$4.31
93+	$3.91	$3.91
527+	$3.53	$3.53
1,023+	$3.37	$3.37
2,511+	$3.26	$3.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-104652-2 Features

20 positions with 1.27mm pitch.
Surface mount with solder termination.
Push-pull fastening with board lock.
Tin contact finish, 0.76µm thick.
Operating temperature -65°C to 105°C.

5-104652-2 Applications

Board-to-board connections in compact electronics.
Cable-to-board interfaces in industrial equipment.
High-density signal routing in communication systems.
Reliable connections in harsh temperature environments.

5-104652-2 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the pitch of the 5-104652-2 connector?

The pitch is 1.27mm (0.050 inches).

How many positions does the 5-104652-2 have?

It has 20 positions, all loaded, in 2 rows.

What is the mounting type for this connector?

It is a surface mount connector with solder termination.

What is the operating temperature range?

The operating temperature range is -65°C to 105°C.

What is the contact finish on the 5-104652-2?

The contact finish is tin with a thickness of 0.76µm (30.0µin).

What fastening type does this connector use?

It uses a push-pull fastening type and includes a board lock.

What are the mated stacking heights supported?

Supported mated stacking heights are 6.35mm, 8.13mm, and 9.91mm.

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	TE Connectivity
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Lock
Insulation Color	Black
Insulation Height	4.75mm (0.187")
Mated Stacking Heights	6.35mm, 8.13mm, 9.91mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-65°C ~ 105°C
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
