| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Storage Temperature | |
| Style | |
| Termination | |
| Voltage Rating |

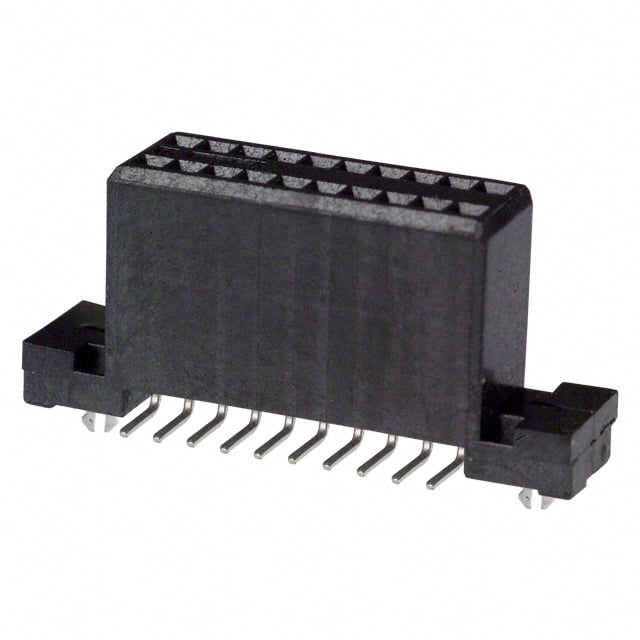

The TE Connectivity 5-104550-2 is a 20-position surface mount receptacle designed for board-to-board applications. It features a push-pull fastening mechanism and tin-plated female socket contacts with a contact finish thickness of 30.0µin (0.76µm). The connector has a 1.27mm (0.050") pitch and a row spacing of 2.54mm (0.100") in a 2-row configuration, with all 20 positions loaded.
This receptacle is rated for 30VAC and operates over a temperature range of -65°C to 105°C. The housing is made of a material with a UL94 V-0 flammability rating and has a black insulation color. The insulation height is 9.40mm (0.370"). It includes a board lock feature for secure attachment to the PCB.
The connector is surface mount (SMT) with solder termination, making it suitable for automated assembly processes. It supports mated stacking heights of 11.94mm and 13.08mm, providing flexibility in board-to-board spacing. The part is RoHS3 compliant and has an MSL of 1 (unlimited).
20 positions, all loaded, in a 2-row configuration.
1.27mm (0.050").
30VAC.
Surface mount (SMT) with solder termination.
-65°C to 105°C.
Tin with a thickness of 30.0µin (0.76µm).
