| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,014 pcs
|
1014 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
68 pcs
|
68 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

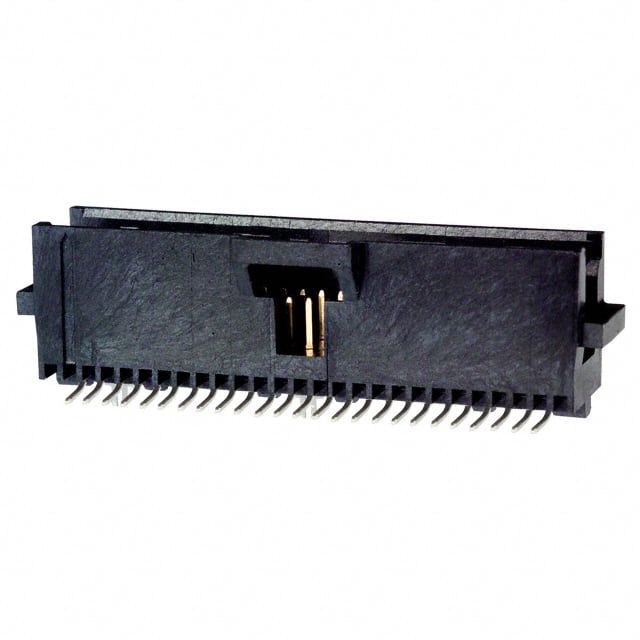

The TE Connectivity 5-104549-7 is a 50 position, 2 row, 1.27mm pitch shrouded header designed for board-to-board or cable applications. It features a 4-wall shroud with latch holder for secure mating and a board lock for reliable retention on the PCB. The header uses male pin contacts made of copper alloy with a tin finish (0.76µm thickness) and circular contact shape. The insulation is black polyphthalamide (PPA) with a UL94 V-0 flammability rating. This component is surface mount with solder termination and operates over a temperature range of -65°C to 105°C. It is rated for 30VAC.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.74 | $24.74 |
| 10+ | $15.73 | $15.73 |
| 26+ | $15.71 | $15.71 |
| 52+ | $15.44 | $15.44 |
| 104+ | $15.42 | $15.42 |
| 507+ | $15.39 | $15.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm.
It has 50 positions arranged in 2 rows.
Surface mount with solder termination.
30VAC.
-65°C to 105°C.
Tin with a thickness of 0.76µm.
Yes, it features a board lock.
