| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

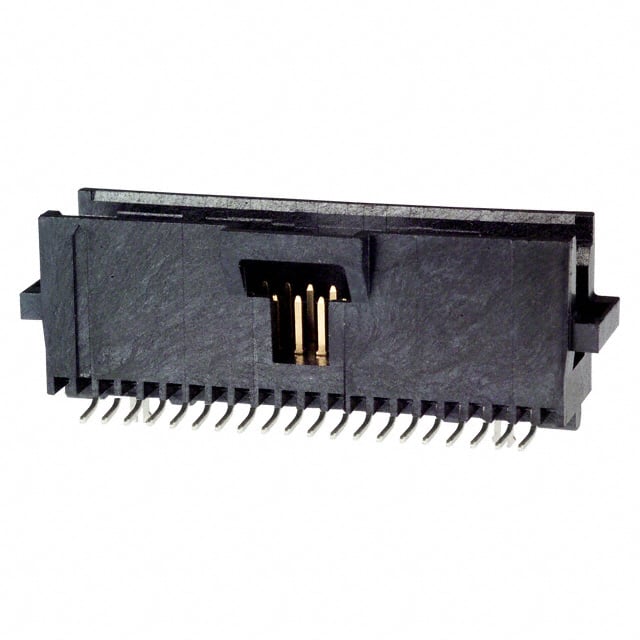

The TE Connectivity 5-104549-6 is a 40-position, 2-row, 1.27mm pitch surface mount shrouded header designed for board-to-board or cable applications. It features a 4-wall shrouded design with a latch holder for secure mating and includes a board lock feature for reliable attachment to the PCB.
This connector is constructed with a black polyphthalamide (PPA) insulator and tin-plated copper alloy contacts with a contact finish thickness of 30.0µin (0.76µm). The contacts are circular in shape and have a length of 3.18mm. The insulation height is 11.05mm and the row spacing is 2.54mm.
The header is rated for 30VAC and has an operating temperature range of -65°C to 105°C. The insulation material has a UL94 V-0 flammability rating. All 40 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.18 | $12.18 |
| 10+ | $10.02 | $10.02 |
| 25+ | $10.01 | $10.01 |
| 112+ | $9.77 | $9.77 |
| 256+ | $8.91 | $8.91 |
| 512+ | $8.34 | $8.34 |
| 1,008+ | $7.47 | $7.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 40 positions arranged in 2 rows.
The voltage rating is 30VAC.
It is a surface mount component with solder termination.
The operating temperature range is -65°C to 105°C.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
Yes, it includes a board lock feature.
