| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
735 pcs
|
735 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

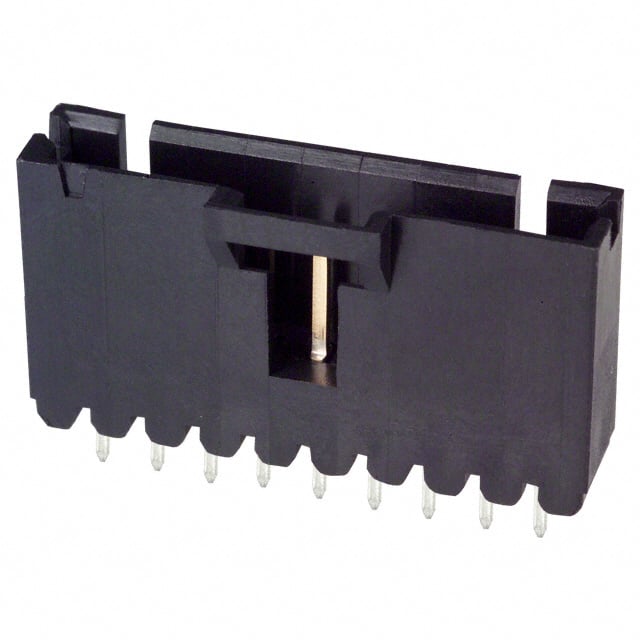

The TE Connectivity 5-104363-8 is a 9-position, single-row header connector designed for board-to-board or cable applications. It features a shrouded 4-wall design with latch holder fastening, providing secure mating and reliable connection. The header uses male pin contacts made of brass with a tin finish, offering good conductivity and corrosion resistance.
With a pitch of 2.54mm, the connector accommodates standard ribbon cable or matching receptacle connectors. The overall contact length is 13.97mm, with a mating contact length of 5.84mm. The insulation height is 13.60mm, and the housing is made of black thermoplastic with UL94 V-0 flammability rating. The operating temperature range is -65°C to 105°C.
The header is rated for 3A current. It has a keying slot feature to prevent misalignment. The connector uses through-hole mounting with solder termination, suitable for PCB assembly. The contact shape is square, typical for pin headers.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.21 | $3.21 |
| 10+ | $2.61 | $2.61 |
| 21+ | $2.60 | $2.60 |
| 105+ | $2.32 | $2.32 |
| 504+ | $2.07 | $2.07 |
| 1,008+ | $1.90 | $1.90 |
| 5,019+ | $1.76 | $1.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions in a single row.
2.54mm.
3A.
Through hole.
-65°C to 105°C.
Tin with 15.0µin (0.38µm) thickness.
Yes, it has a shrouded 4-wall design.
