| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
713 pcs
|
713 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Mating Area Plating Material | |
| Contact Mating Area Plating Thickness | |
| Contact Retention | |
| Contact Retention Type | |
| Contact Shape | |
| Contact Termination Area Plating Material | |
| Contact Termination Area Plating Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Header Type | |
| Height | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mating Alignment | |
| Mating Alignment Type | |
| Mating Post Length | |
| Mating Retention | |
| Mating Retention Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| PCB Mounting Style | |
| PCB Thickness Recommended | |
| Pitch | |
| Row-to-Row Spacing | |
| Shrouding | |
| Strain Relief | |
| Style | |
| Tail Length | |
| Tail Plating Material | |
| Tail Plating Thickness | |
| Tape & Reel | |
| Termination | |
| Termination Method to Wire & Cable | |
| Termination Resistance |

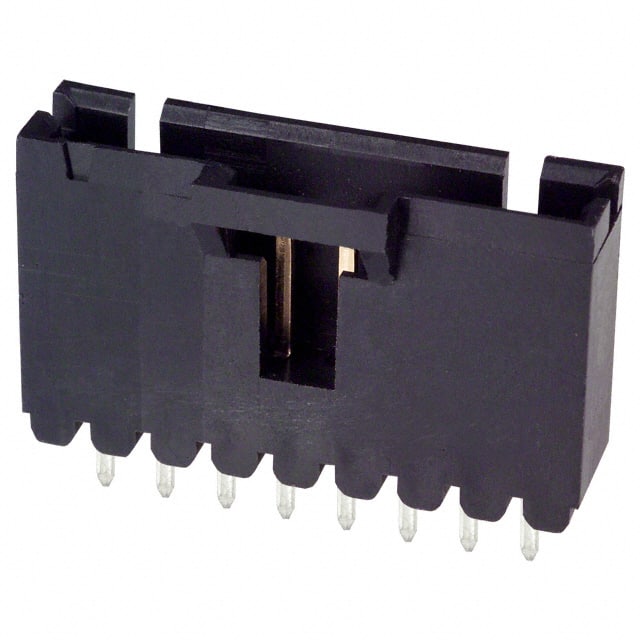

The TE Connectivity AMPMODU MTE 5-104363-7 is a single row, 8 position shrouded header with a 2.54mm [0.100 in] pitch. This connector features a vertical through hole mounting style with solder termination and a latch holder fastening system for secure mating. The header includes a keying slot to prevent misinsertion and a polarization feature for correct alignment.
The contacts are made of brass with a square male pin design. The contact mating area is plated with 15 microinches of gold, while the termination and tail areas are plated with tin. The header is fully loaded with all 8 positions occupied. The insulation is black thermoplastic with a material flammability rating of UL94 V-0, suitable for a wide operating temperature range of -65°C to 105°C.
Electrically, this header is rated for a current of 3A per contact and has a dielectric withstanding voltage of 600V. Insulation resistance is 5000 MOhms. The overall contact length is 13.97mm [0.550 in] with a mating post length of 5.84mm [0.230 in] and a recommended PCB thickness of 1.57mm [0.062 in]. This part is part of the AMPMODU MTE interconnection system, designed for board-to-board or cable-to-board applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.07 | $2.07 |
| 10+ | $1.48 | $1.48 |
| 23+ | $1.45 | $1.45 |
| 115+ | $1.30 | $1.30 |
| 253+ | $1.25 | $1.25 |
| 506+ | $1.18 | $1.18 |
| 1,012+ | $1.14 | $1.14 |
| 5,014+ | $1.07 | $1.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100 inches).
It has 8 positions in a single row.
The current rating is 3 Amps.
The header uses a latch holder fastening system.
The operating temperature range is -65°C to 105°C.
