| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,901 pcs
|
1901 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

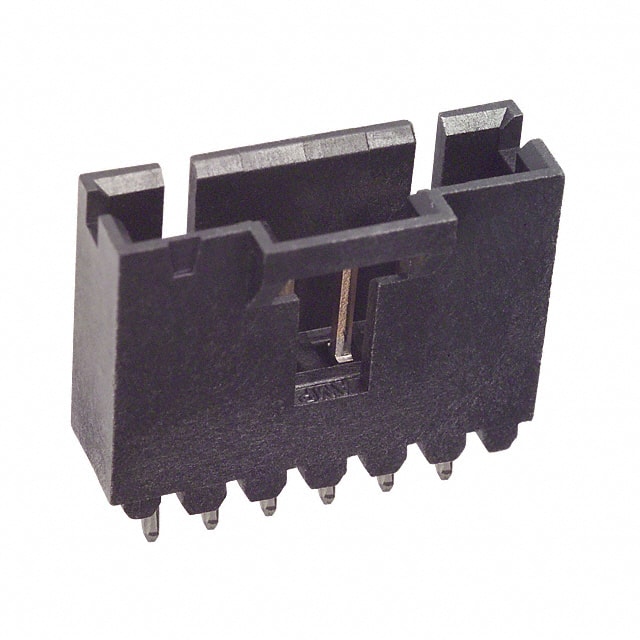

TE Connectivity 5-104362-5 is a 6-position, 2.54mm pitch, single-row male pin header connector. It is a shrouded design with a 4-wall configuration, providing alignment and protection for the contacts. The connector supports board-to-board or cable connections.
Mechanically, it features through-hole mounting with termination options including press-fit and solder. The contacts are made of brass with a tin finish (15.0µin / 0.38µm). The insulator is thermoplastic, black, and rated UL94 V-0 for flammability. The overall contact length is 13.97mm, and the insulation height is 13.60mm. A latch holder fastening type and a keying slot are included for secure mating and polarization.
Electrically, the connector is rated for 3A current and 267V voltage. It operates over a temperature range of -65°C to 105°C. The contact length is 5.84mm, and all 6 positions are loaded. The contact shape is square.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.48 | $1.48 |
| 10+ | $1.38 | $1.38 |
| 30+ | $1.05 | $1.05 |
| 120+ | $0.99 | $0.99 |
| 270+ | $0.90 | $0.90 |
| 510+ | $0.85 | $0.85 |
| 1,020+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54mm.
3A.
267V.
Through Hole.
-65°C to 105°C.
Latch Holder.
