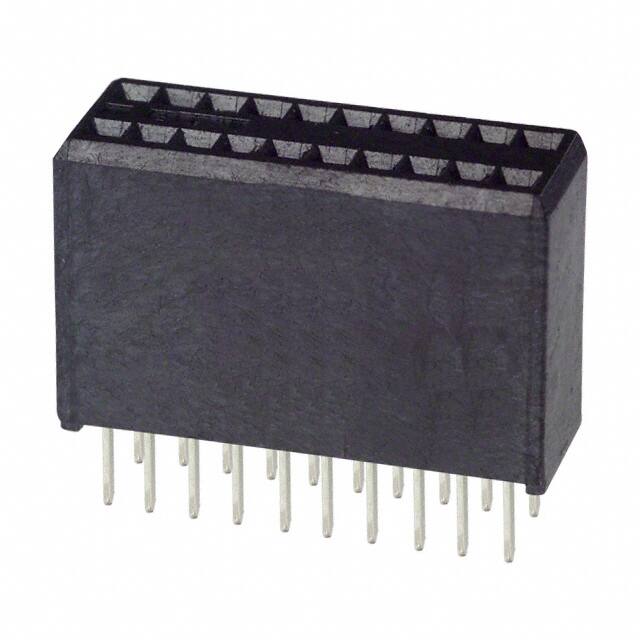

5-104078-1 TE Connectivity 5-104078-1 is a 20 position board-to-board receptacle connector with 1.27mm pitch, through hole mounting, and tin contact finish.
Mfr Part #:

5-104078-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5-104078-1 is a 20 position board-to-board receptacle connector with 1.27mm pitch, through hole mounting, and tin contact finish.
✓ Total Stock: 109 pcs
$ Price Range: $4.28

5-104078-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
109 pcs
On Request
109 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-104078-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Lead Spacing
Mated Stacking Heights
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

5-104078-1 Description

Short technical summary and product information.

TE Connectivity 5-104078-1 is a 20-position board-to-board receptacle connector with 2 rows of contacts. It features a 1.27mm (0.050") pitch and 2.54mm row spacing. The connector is through-hole mounted with solder termination. The contact type is female socket with tin contact finish of 30.0µin thickness. The insulation is black with a height of 8.89mm. Mated stacking heights are 11.43mm and 12.57mm. Electrical ratings: 1A current and 30VAC voltage. Operating temperature range is -65°C to 105°C. Flammability rating is UL94 V-0. Fastening type is push-pull. All positions are loaded.

5-104078-1 Quick Information

Product Type: Rectangular Connector - Receptacle
Canonical Name: Receptacle, Female Socket, 20 Position, 2 Row, 1.27mm Pitch, Through Hole, Solder, Board to Board, Tin Contact Finish
Subcategory: Board to Board Connector

5-104078-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5-104078-1 Estimated Pricing

Qty Low High
2,508+ $4.28 $4.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-104078-1 Features

  • 20 positions arranged in 2 rows.
  • 1.27mm pitch with 2.54mm row spacing.
  • Through hole mounting with solder termination.
  • Tin contact finish, 30 microinches thick.
  • Rated for 1A and 30VAC operation.

5-104078-1 Applications

  • Ideal for board-to-board connections in compact electronics.
  • Used in applications requiring 1.27mm pitch.
  • Suitable for low voltage and current signal circuits.
  • Common in stacking configurations for space-constrained designs.

5-104078-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

20 positions.

What is the pitch of this connector?

1.27mm (0.050").

What is the current rating?

1A.

What is the voltage rating?

30VAC.

What is the mounting type?

Through hole.

What is the contact finish?

Tin with 30µin thickness.

What is the operating temperature range?

-65°C to 105°C.
