| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
229 pcs
|
229 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

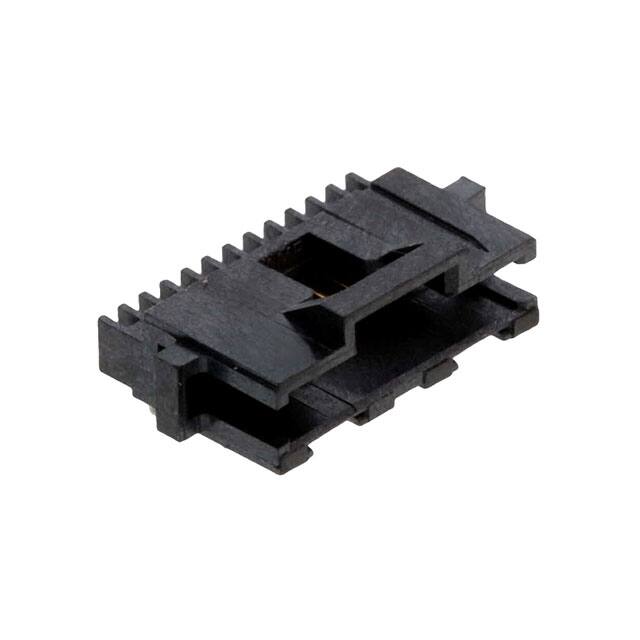

The TE Connectivity 5-104074-1 is a 10-position, single-row, right-angle shrouded header designed for board-to-board or cable connections. With a 1.27mm pitch, it provides a compact interconnect solution for space-constrained applications.
The header features through-hole mounting with solder termination, ensuring reliable mechanical and electrical connections. The contacts are made of copper alloy with a tin finish (30.0µin), offering good conductivity and solderability. The black thermoplastic insulator is rated UL94 V-0 for flame resistance.
This shrouded header includes a 2-wall shroud and a latch holder for secure mating, along with a board guide for proper alignment during assembly. It operates over a temperature range of -65°C to 105°C and is rated for 30VAC.
The right-angle orientation allows for low-profile connections parallel to the PCB, making it suitable for various electronic assemblies. All 10 positions are loaded, providing full signal or power routing capability.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.68 | $3.68 |
| 10+ | $3.51 | $3.51 |
| 27+ | $2.83 | $2.83 |
| 108+ | $2.64 | $2.64 |
| 270+ | $2.59 | $2.59 |
| 2,511+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 10 positions in a single row.
The pitch is 1.27mm (0.050 inches).
The voltage rating is 30VAC.
It is a through-hole, right-angle mount header with solder termination.
The operating temperature range is -65°C to 105°C.
The contacts have a tin finish with a thickness of 30.0µin (0.76µm).
Yes, it features a shrouded 2-wall design with a latch holder.
