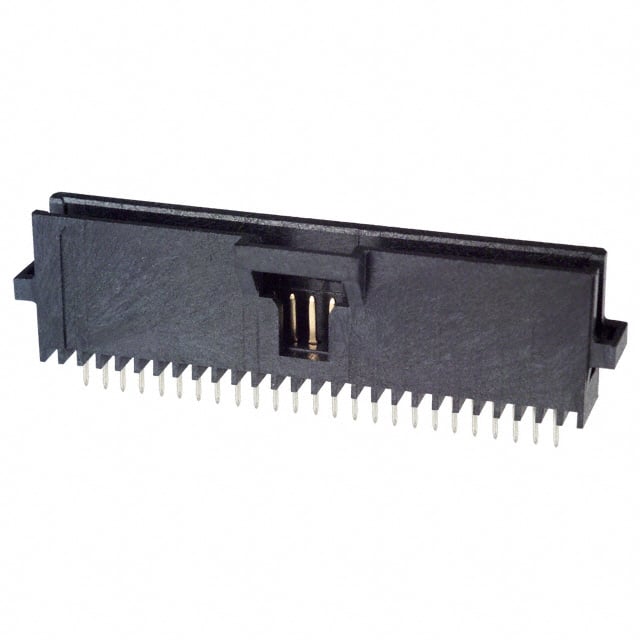

5-104068-5 50-position shrouded header, 1.27mm pitch, 2 rows, through hole, solder termination, tin plated contacts.
Mfr Part #:

5-104068-5

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
50-position shrouded header, 1.27mm pitch, 2 rows, through hole, solder termination, tin plated contacts.
✓ Total Stock: 1,697 pcs
$ Price Range: $8.69 - $14.64

5-104068-5 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
1,092 pcs
On Request
1092 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
546 pcs
On Request
546 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
59 pcs
On Request
59 pcs On Request 1 On Request On Request 0714 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5-104068-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

5-104068-5 Description

Short technical summary and product information.

The 5-104068-5 is a 50-position shrouded header by TE Connectivity, part of the AMPMODU System 50 family. It features a 1.27mm pitch with two rows, all positions loaded, and a through hole mounting style with solder termination. The header is shrouded with two walls and includes a latch holder fastening system for secure mating. Contacts are made of copper alloy with tin plating (30.0µin) and have a circular contact shape. The insulation is black thermoplastic with a flammability rating of UL94 V-0. Operating temperature range is -65°C to 105°C, and it is rated for 30VAC. This connector supports board-to-board or cable applications.

5-104068-5 Quick Information

Product Type: Header
Series: AMPMODU System 50
Canonical Name: 5-104068-5 TE Connectivity Header, 50 Position, 2 Row, Through Hole
Subcategory: Shrouded Header

5-104068-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5-104068-5 Estimated Pricing

Qty Low High
1+ $14.64 $14.64
10+ $10.41 $10.41
26+ $10.27 $10.27
52+ $9.73 $9.73
104+ $9.43 $9.43
260+ $9.10 $9.10
1,001+ $8.69 $8.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

5-104068-5 Features

  • 50 positions with 1.27mm pitch.
  • Through hole mounting with solder termination.
  • Tin plated copper alloy contacts.
  • Shrouded with two walls and latch holder.
  • UL94 V-0 rated thermoplastic insulation.

5-104068-5 Applications

  • Board-to-board connector applications.
  • Cable-to-board interconnection systems.
  • Industrial control and automation equipment.

5-104068-5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this connector?

The pitch is 1.27mm (0.050").

What is the number of positions?

50 positions, all loaded, in 2 rows.

What mounting type does this header use?

Through hole mounting with solder termination.

What is the voltage rating?

30VAC.

What is the operating temperature range?

-65°C to 105°C.

What is the contact finish?

Tin, 30.0µin (0.76µm) thickness.

What is the insulation material and flammability rating?

Black thermoplastic rated UL94 V-0.
