| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,280 pcs
|
1280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

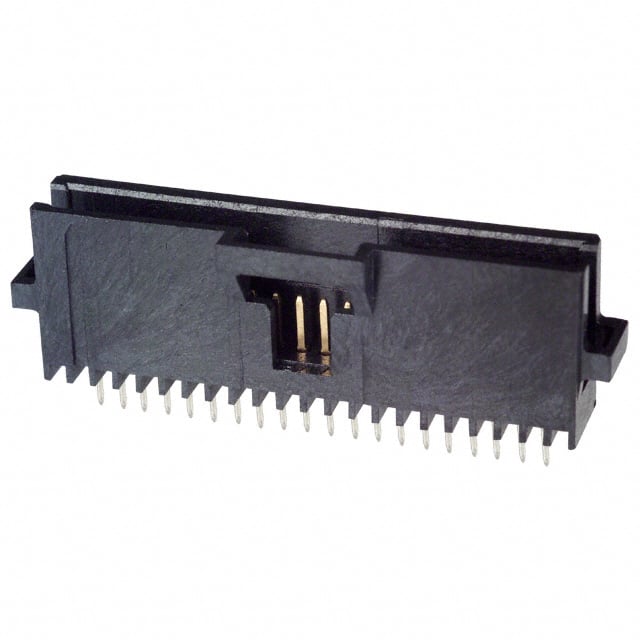

The 5-104068-4 from TE Connectivity is a 40-position, 2-row male pin header from the AMPMODU System 50 series. This shrouded header features a 1.27mm (0.050") pitch and 2.54mm (0.100") row spacing. Designed for board-to-board or cable-to-board applications, it uses through hole solder termination.
The header is rated for 30VAC and operates over a temperature range of -65°C to 105°C. Construction uses copper alloy contacts with tin finish (30µin) and a black thermoplastic insulator rated UL94 V-0. A latch holder fastening type provides secure connection mating.
Contact length for mating is 3.18mm (0.125"), and the insulation height is 9.91mm (0.390"). The part is part of the AMPMODU System 50 product family and has a cross-reference distributor part number A32570-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.70 | $12.70 |
| 10+ | $10.16 | $10.16 |
| 25+ | $9.77 | $9.77 |
| 48+ | $9.56 | $9.56 |
| 112+ | $9.26 | $9.26 |
| 256+ | $8.84 | $8.84 |
| 512+ | $8.64 | $8.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
40 positions.
Through hole mounting with solder termination.
30VAC.
