| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
729 pcs
|
729 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
406 pcs
|
406 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
172 pcs
|
172 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Solder Process Capability | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

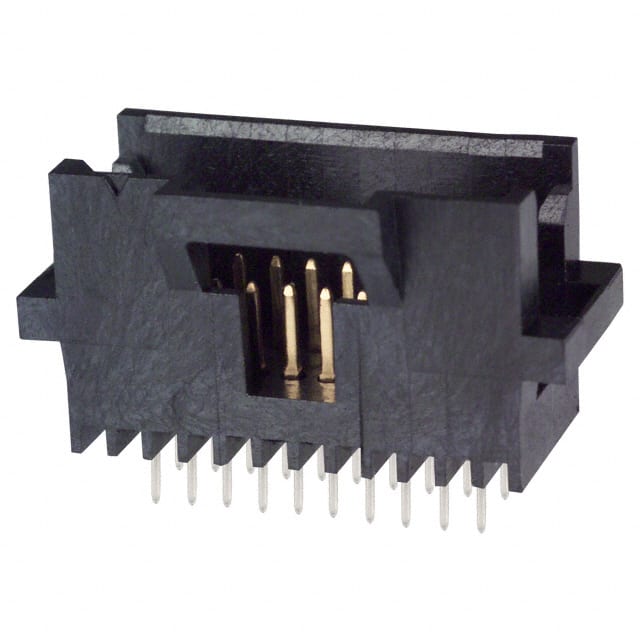

The TE Connectivity 5-104068-1 is a 20-position, 2-row shrouded header designed for board-to-board or cable applications. It features a 1.27mm (0.050") pitch and 2.54mm row spacing, enabling high-density interconnections. The through-hole mounting with solder termination ensures reliable mechanical attachment.
The header uses male pin contacts made of copper alloy with a tin finish (30µin thickness) for good conductivity and solderability. The black thermoplastic insulator is rated UL94 V-0 for flammability resistance. A latch holder fastening type provides secure mating retention.
Electrical rating is 30VAC, and the operating temperature range spans -65°C to 105°C. The component is wave solder capable to 260°C, suitable for standard assembly processes. Compliance includes RoHS3, REACH SVHC-free, and low halogen content.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.47 | $5.47 |
| 10+ | $4.78 | $4.78 |
| 27+ | $3.63 | $3.63 |
| 54+ | $3.54 | $3.54 |
| 108+ | $3.39 | $3.39 |
| 270+ | $3.25 | $3.25 |
| 1,026+ | $3.09 | $3.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions arranged in 2 rows.
1.27mm (0.050") with 2.54mm row spacing.
30VAC.
Through hole with solder termination.
-65°C to 105°C.
Tin, 30µin (0.76µm) thickness.
Yes, it is EU RoHS3 compliant per TE declaration.
